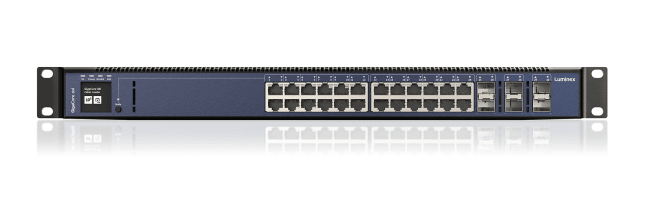

Switch Gigacore 30i 10Gb 500W PoE++

Produktnummer: LUM-GIGACORE-30i-POE-10GB
inkl. mva.

Generelle spesifikasjoner
Bruttovekt N/A kg
Produsentens varenummer LU0100077-10P-1S5

10Gb Network switch for converged AV networks

GigaCore 30i comes  fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.

With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.

GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.



  • Most suitable applications: Fixed installations
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 168Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 24 x RJ45 connectors (1Gbps))
  • Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
  • Ethernet port speed: 1Gbps
  • Serial: 1 x USB C
  • Power connectivity: 1 x IEC (14C) inlet for each PSU
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 40W non PoE version Maximum 500W/1000W with PoE
  • Fuse: NA
  • Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
  • Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
  • PoE: PoE ++ Optional (up to 1000W)
