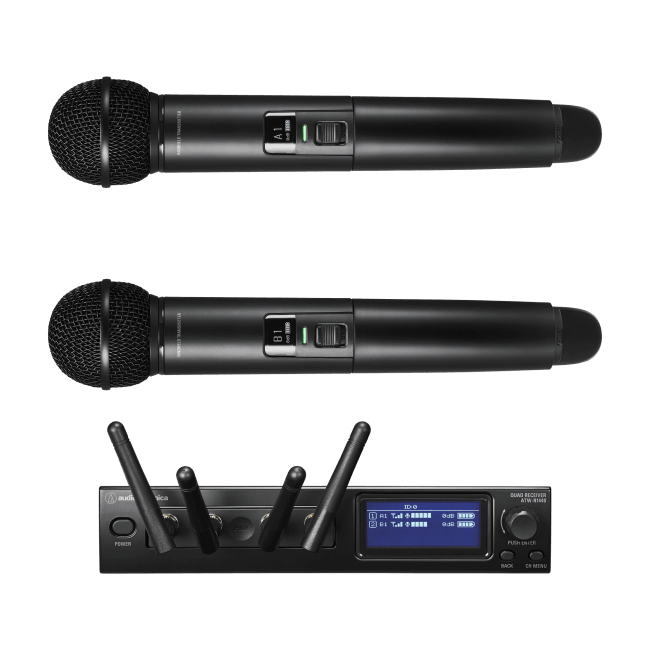

System 20 PRO System m/2x Håndholdt + 1x Mottager
Produktnummer: ATW-1422
inkl. mva.
Rackbrakett medfølger - 1 kort og 1 lang, ved sammenkobling av 2 mottagere i 1U benyttes de 2 lange som "sammenkoblingsbrakett" på undersiden - se bilde. OBS: Mottageren har 4 kanaler - du kan altså velge inntil 2x sendere til i tillegg til de 2 som følger med i pakken.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | ATW-1422 |
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
| Operating Frequencies | 2,402 to 2,480 MHz |
|---|---|
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels HD mode: 20 channels It depends on the region and environment. |
| System Frequency Response | 20 to 20,000 Hz Varies depending on the microphone to be installed. |
