8K HDMI 2.1 Test Pattern Generator/Analyzer

The TPG-8K is the first test 8K test pattern generator with analyzer to focus on AV over IP in addition to HDMI. AVoIP has quickly become the leading distribution for our industry which is why we built a device to properly test the image quality from end to end. The latency performance of the stream is just as important which is why we added the ability to measure end to end latency including the network switch latency. Along with HDMI, HDCP, and EDID analyzing assures an install or lab testing goes smooth and quickly. We even made it rack mountable for use at a headend to send patterns or view content of the HDMI or SDVoE with optional expansion card.

Technical

Role of usageHDMI 2.1 Installation Gear

Video bandwidthInput up to FRL 5 (48G)

Output up to FRL 5 (48G)

HDMI complianceHDMI 2.1 and below

HDCP complianceHDCP 2.3 and below

Video Supportup to 8K60 4:2:0 10bits, 8K30 4:4:4 & 4K2K 120Hz

ESD protectionHuman body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

Video Format SupportHDMI & SDVoE

Audio2 Internal Speakers

Input1x HDMI 2.1

Output1x HDMI 2.1

Control7” Capacitive Touch Screen (1280 x 800) & Mouse Control

HDMI connectorType A [19-pin female]

USB SupportFirmware update

USB connectorUSB Type A (Firmware Update), USB Micro (Console)

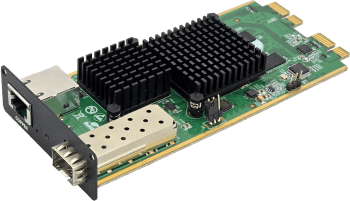

Option Card SlotSDVoE Option Card Slot (TPG-SDVoE)

Mechanical

HousingMetal Case

Dimensions (L x W x H)11.25” x 7” x 3” (285.75mm x 177.8mm x 76.2mm)

Weight4.6lbs (2.087kg)

Power Supply12v DC, PoE+, & Battery

Power Consumption23 Watts with Option Card

Operation Temperature0~40o C [32~104o F]

Storage Temperature-20~60o C [-4~140o F]

Relative Humidity20~90% RH [No Condensation]

Warranty2 Years

Package Contents1x TPG-8K, 1x Plastic Protective Case
