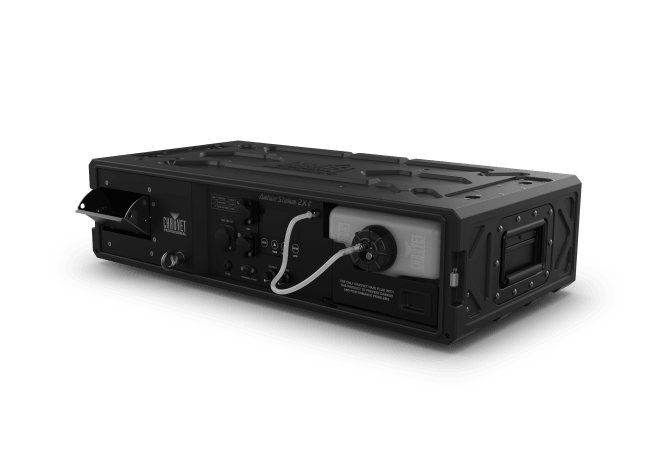

AMHAZE STADIUM 2X IP

Compact, professional hazer gives high quality haze for live lighting applications

Suitable for temporary outdoor/wet use

Continuous operation produces haze for medium to large applications

Our innovative, fully serviceable heater assembly is designed for maximum efficiency and longevity. Enjoy easy internal servicing and cleaning, ensuring optimal performance with minimal downtime. Plus, the replaceable heater core extends the product’s lifespan while reducing waste—delivering cost savings and sustainability without compromising on reliability.

Our innovative heater design significantly reduces clogging, ensuring smooth operation, minimal maintenance, and enhanced reliability for long-term performance

Adjustable vent louver for directional haze flow

Ships in integrated, rugged flight case, suitable for rental/touring applications with removeable front cover with storage for accessories

Designed for seamless compatibility, this unit utilizes Chauvet’s standard 140D Omega Mounting Brackets, allowing for easy integration with standard mounting hardware for quick and secure installation.

Experience precise control with continuous variable haze output and adjustable blower speed, easily fine-tuned via DMX integration or intuitive manual knobs for seamless customization.

Dynamic Effects

Fan Performance: 164 cfm

Low Fluid Shutdown: Yes

Construction / Physical

Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)

Weight: 48.8 lb (22.13 kg)

Exterior Color: Black

Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel

Tank Capacity: 1.32 gal (5 l)

Fluid Consumption: 9.5 ml/min

Maximum Runtime: 8 hrs

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR

Cable Length (power): 5 ft (1.5 m)

Firmware upgrades: USB type-C

Control

Control Protocol: DMX, RDM

DMX Channels: 2

Modes/Personalities: 1 personality (2ch)

On-Board Control: Yes

Electrical

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz

Power and Current: 511 W, 4.26 A @ 120 V, 60 Hz

Power and Current: 722 W, 3.14 A @ 230 V, 50 Hz [1.2 A inrush]

Heat-up Time: 6 min

Fuse (120V model): F8 A, 250 V

Fuse (230V model): F5 A, 250 V

Certifications / Qualifications

CE, UKCA

IP Rating: IP65, temporary outdoor/wet use

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Amhaze Stadium II IP

Seetronic IP 65 Powerkon power cord

2x Mounting brackets

Output nozzle assembly

Front Cover
