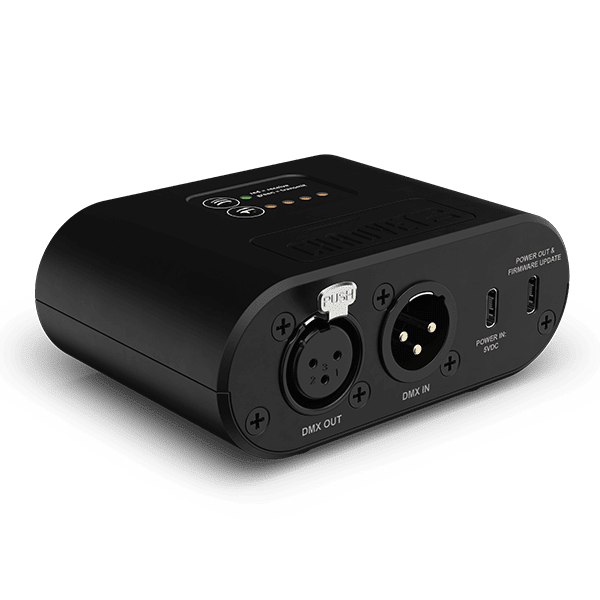

D-Fi Hub 2

Sync an unlimited number of D-Fi-ready fixtures wirelessly and simultaneously with D-Fi Hub 2. A compact D-Fi wireless transmitter/receiver that sends and receives wireless DMX signals over an impressively long range while being fully FCC and R&TTE compliant. Compatible with the ILS Command, this unit is the perfect sidekick to your ILS rig. With a fastening strap, USB-C power out and more, ease of use and versatility are built right in to D-Fi Hub 2.

Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit

Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously

Compatible with the ILS Command to wirelessly send or receive ILS protocols

LED indicators clearly communicate the TX/RX status and wireless D-Fi frequencies

USB-C passthrough powers additional devices

Built-in hook and loop fastener strap and M10 threaded holes for direct mounting to truss

Fully FCC/RTTE compliant

Specifications

DMX Channels:3-pin XLR

Operating Frequency:2.412 to 2.484 GHz

Input Voltage:5 VDC, 2 A (external power supply: 100 to 240 VAC, 50/60 Hz)

Weight:0.2 lb (0.1 kg)

Size:3.9 x 3 x 1.6 in (100 x 77 x 41 mm)

Approvals:CE, ROHS, FCC

Max Unobstructed Distance: 656 ft (200 m)

What's Included

DFI-HUB 2

Power cord

Power supply

Quick Reference Guide
