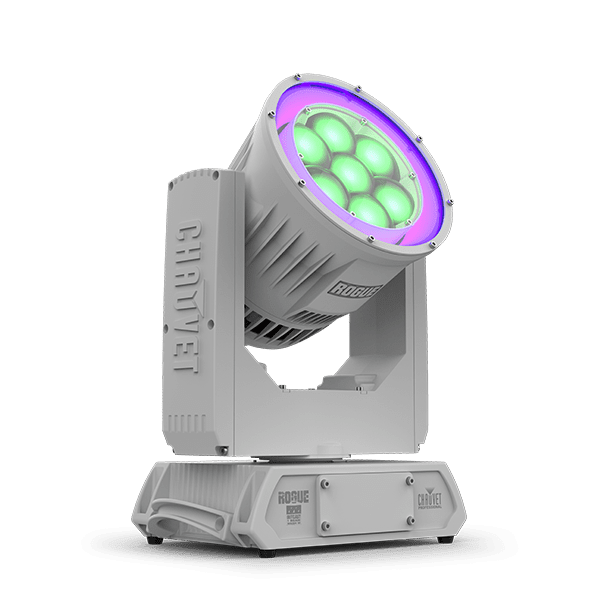

Rouge Outcast 1 Beam Wash - Marine grade

Fully featured RGBW LED IP 66 rated yoke wash fixture with zoom and RGB LED ring

C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments

Included display cover for extended outdoor usage in and near marine environments

Stainless steel gland nuts for extended outdoor usage in and near marine environments

16-bit dimming of master dimmer as well as individual colors for smooth control of fades

12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities

5-pin DMX input/output connections 

Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors

Unique lens design for excellent color blending and tight beam effects

RDM-enabled for remote addressing and trouble shooting 

Selectable PWM settings for camera operation

Zoom Range: 3.9° to 55.3° for maximum coverage

User selectable calibrated white for 7500 K at full output

6 distinct dimming modes for advanced control

Easy-to-read OLED display with simple, effective menu options

Simple and complex DMX channel profiles for programming versatility 

USB-C port for uploading software 

Specifications

Optical

Light Source: 7 LEDs (quad-color RGBW) 45W, (3 A), 50,000 hours life expectancy

Light Source: 97 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.

Color Temperature (range): 2800 to 10000 K

Beam Angle: 9.1° to 32.3°

Field Angle: 11.2° to 49.2 °

Zoom Range: 3.9° to 55.3°

Zoom Angle: 11° to 63.2 °

Lumens – Source: 5,900

Lumens – Output: 4,073

Illuminance (3.9°): 15,308 lux @ 5 m

Illuminance (55.3°): 473 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/260°

Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 260° Tilt.

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Curves: 4

Built-in Automated Programs: Yes

Customizable Programs: No

Recall Custom Programs: No

Construction / Physical

Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)

Weight: 20.2 lb (9.16 kg)

Exterior Color: White

Housing Material: Aluminum

Connections

Power Connection: Edison (local) plug to Seetronic PowerKON IP65

Data Connectors: 5-pin XLR

Cable Length (power input): 5 ft (1.5 m)

Cable Length (signal in/out): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 15, 24, 30, 64, 111 or 135

Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V

Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz

Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz

Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz

Fuse Size: 8A, 250 V

Certifications / Qualifications

CE, MET, FCC, FCC, UKCA

IP Rating: IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Maximum Exterior Surface Temperature (Tc): 80° C / 176° F

Maximum Ambient Temperature (ta) 45° C / 113° F

What's Included

Rogue Outcast 1 BeamWash M

2 Omega brackets with mounting hardware ( 2 Allen Key bolts)

Display cover

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN 

Safety Cable: SC-07  

DMX Cables 

Flight Case

UPLOAD 08 software uploader
