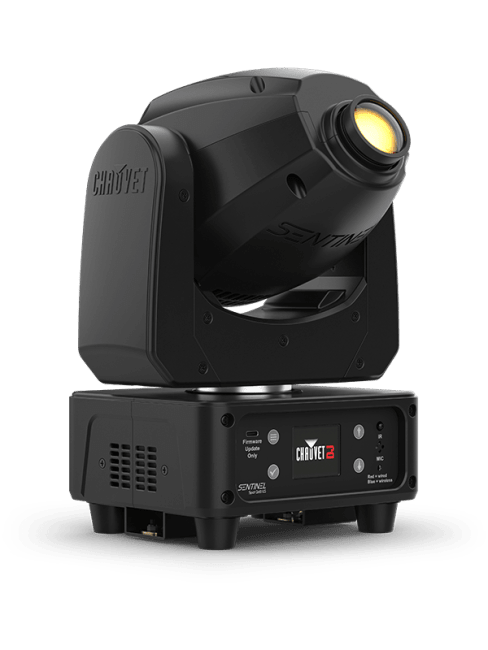

Sentinel Spot Q 60 ILS

The versatile Sentinel Spot Q60 ILS brings all the essential moving head features with no compromise and the added benefit of a Totem Mode that keeps all the action pointed at the dance floor. Project crisp gobos and saturated colors with its intense 60W RGBW LED. Built-in D-Fi makes wireless setups easy and ILS compatibility makes it a snap to instantly synchronize with a wide range of fixture types to create cutting-edge light shows. Smooth motion, consistent color and easy control, all in a compact size ideal for your next party gig.

Cutting-edge moving head spot fitted with an intense RGBW color mixing LED

Built-in DFI transceiver communicates DMX or ILS signals wirelessly

Easy navigation and access to all functions directly from the full-color LCD display

ILS compatibility for use in the ILS ecosystem

Totem Mode keeps the moving head focused on the dance floor

Save time running cables and extension cords by power linking multiple units

Fits best in the CHS-40 VIP Gear Bag

Specifications

DMX Channels:9 or 15

DMX Connectors:3-pin XLR

Pan and Tilt:540°/229°

Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 229° tilt

Gobos:5 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Light Source:1 LED (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy

Strobe Rate:0 to 20 Hz

Beam Angle:12°

Illuminance:8,687 lux @ 2 m

Power Linking:7 units @ 120 V; 11 units @ 230 V

Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:76 W, 1 A @ 120 V, 60 Hz

Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness

Weight:9 lb (4.1 kg)

Size: 8 x 5.9 x 13 in (204 x 150 x 332 mm)

Approvals:CE, RoHS, FCC

Power and Current: 76 W, 0.7 A @ 230 V, 50 Hz

Optional Controllers: IRC-6, ILS Command

What's Included

Sentinel Spot Q60 ILS

Power cord

Hanging bracket

Quick Reference Guide
