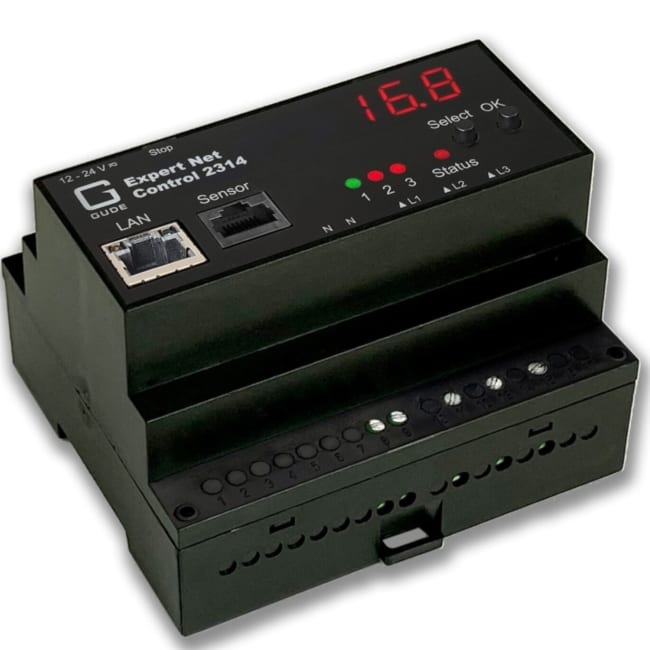

Expert Net Control 2314-1

Technical Details

• Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
• LxWxH: 10.5 x 9 x 7 cm
• Weight: approx.  280 g
• Operating temperature: 0-50 °C
• Storage temperature: -20 – 70 °C
• Relative humidity: 0 – 95 % (non condensing)

Electrical Connections

• Terminal clamps for power supply with 12-24 V AC/DC voltage
• 3 switchable outputs (industrial clamp, 3 fold)
• 1 sensor connector (RJ45) for plug-and-play sensor
• 1 Ethernet connector RJ45 (10/100 Mbit/s)
