Temperature/ Humidity Sens signal inputs 7209
Produktnummer: GUD-7209
inkl. mva.

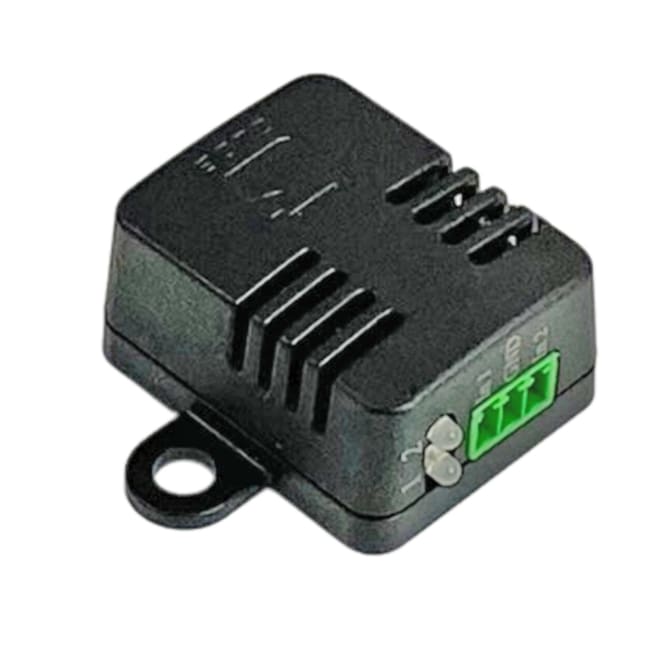

Combined Temp., Humid., Signal Sensor 7209 with RJ45 socket for reliable environment monitoring
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | 7209 |
Technical Details
- Relative humidity: 0-95% (non-condensing)
- Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
- Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
- 2 LEDs for status indication of the signal inputs
- Sensor housing: plug-in plastic shells
- LxWxH: 4.2 x 2.0 x 3.5 cm
- Weight: approx. 29 g
Electrical Connections
- 1 RJ45 socket
- 2 passive signal inputs, industrial terminal, 3-fold
