Expert PDU Energy 8311-16
Produktnummer: GUD-831116
inkl. mva.

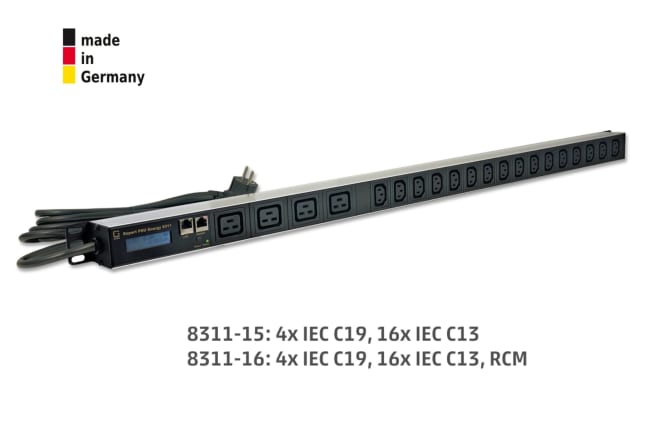

Expert PDU Energy 8311 for more security and energy efficiency in IT and AV installations (not switched) - 4x IEC C19, 16x IEC C13 (with RCM type A)
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | 831116 |
Technical Details
- Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- LxWxH: 87 x 4.4 x 4.4 cm (without mounting brackets)
- Weight: approx. 2.5 kg
- Length of mains cable: 3 m
- Operating temperature: 0-50 °C
- Storage temperature: -20 – 70 °C
- Relative humidity: 0 – 95 % (non condensing)
Electrical Connections
- 1 power supply safety socket type F (max. 16 A, 230 V)
- 4 power ports IEC C19 (max. 16 A) and 16 outlet ports IEC C13 (max. 10 A) for 8311-15, 8311-16
- 1 Ethernet connector RJ45 (10/100 Mbit/s)
- 1 sensor connector (RJ45) for plug-and-play sensors
