Expert PDU Energy 8311-1,7xSchuco,LAN,1xSens,16A,RCM
Produktnummer: GUD-83112
inkl. mva.

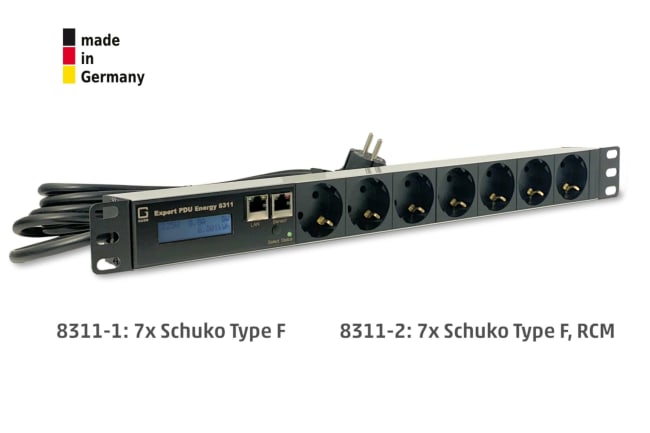

7-fold metered PDU - Expert PDU Energy 8311 for more security and energy efficiency in IT and AV installations (not switched) - - 7 x Schuko, Type F, RCM
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | 83112 |
Technical Details
- Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- LxWxH: 43.4 x 4.4 x 4.4 cm (without mounting brackets)
- Weight: approx. 1.5 kg
- Length of mains cable: 3 m
- Operating temperature: 0-50 °C
- Storage temperature: -20 – 70 °C
- Relative humidity: 0 – 95 % (non condensing)
Electrical Connections
- 1 power supply safety socket type F (max. 16 A, 230 V)
- 7 power ports safety socket type F (max. 16 A)
- 1 Ethernet connector (RJ45) (10/100 Mbit/s)
- 1 sensor connector (RJ45) for plug-and-play sensors
