Expert PDU Energy 8311-4
Produktnummer: GUD-83114
inkl. mva.

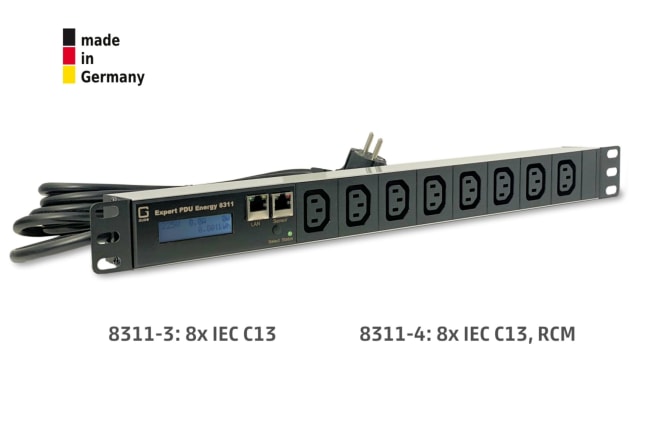

Expert PDU Energy 8311 for more security and energy efficiency in IT and AV installations (not switched) - 8x IEC C13 (RCM Type A)
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | 83114 |
Key Features
- Precise current metering of up to 9 units and residual current (RCM for 8311-4)
- 1 connector for plug-and-play sensors
- Fast and easy installation
- NTP function can be activated
- Supports Radius- und Modbus TCP protocol
Metering function
- Power consumption metering (kwH) with 2 energy counters: one counter counts consistently, the other counter is resettable
- Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Metering of differential current type A (mA)
- 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
Security
- Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
- Encrypted e-mails (SSL, STARTTLS)
- Access protection by IP access control
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- Password protected access
- Beeper for audible alarm when sensor limits are exceeded/deceeded
Operation
- Easy-to-read LED display for displaying total current, IP address and sensor values
- Firmware update via Ethernet during operation (no restart required)
- Simple and flexible configuration via web browser, Windows or Linux program
- Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
- Rapid commissioning thanks to free and reliable drivers from our technology partners
