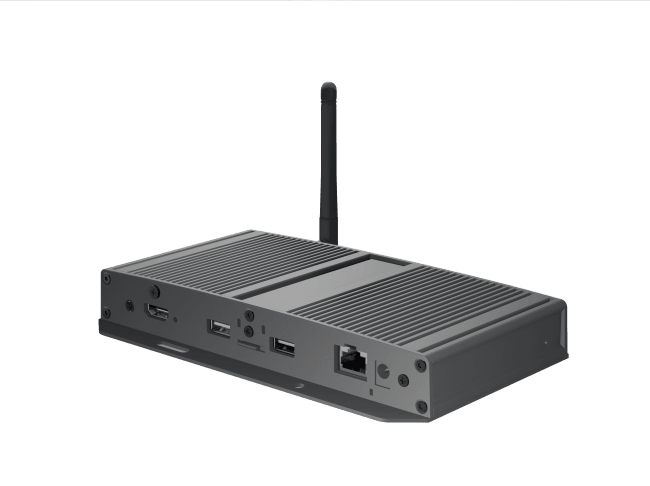

High-Performance Kiosk Processor & 4K Media Player

Produktnummer: IAD-XMP-8550
inkl. mva.

The XMP-8552 has a consistently powerful quad-core processor, packing in the best performance, excellent energy-saving, and diligent watchdog monitoring. Whether powering an entrance-side interactive wayfinding kiosk or gesture-sensitive retail kiosk, your content is always in the best condition, day in, day out.

Generelle spesifikasjoner
Bruttovekt N/A kg
Produsentens varenummer XMP-8550 (A12)

Technical Specifications





XMP-8550

XMP-8552

Local Storage

16 GB eMMC built-in
Micro SD card (replaces internal storage)

16 GB eMMC built-in
Micro SD card (replaces internal storage)

Dimensions 166 x 27 x 125.5mm / 6.5 x 1.1 x 4.9" 166 x 27 x 125.5mm / 6.5 x 1.1 x 4.9"

Supported Video Formats

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

Connectivity IEEE 802.3ab Gigabit Ethernet IEEE 802.3ab Gigabit Ethernet
IEEE 802.11a/b/g/n/ac dual-band Wi-Fi
IEEE 802.3af PoE
Ports Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
External antenna port x 1
Accessories HDMI cable
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code

HDMI cable
External 2 dB wireless antenna
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code
Supported Open Standards HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
Power Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Supported Image Formats JPEG up to 1920 x 1080
PNG up to 1920 x 1080
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
Expansion Options Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card
Supported Audio Formats MP3 up to 320 Kbps MP3 up to 320 Kbps
Environmental Tolerance Operating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Operating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Advanced Signage Features Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Content Management SignApps Express Utility
3rd party solution (optional license)
SignApps Express Utility
3rd party solution (optional license)
HTML5 Support Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
