- 4-in-1 RGBL Color Mixing
- 50,000 hour LED Lifespan
- Beam Angle: 6.5º, or change with optional Beam Filters
- Illuminance: 10,926 lux @ 5 m
- IP Rating: 67
- Integrated Yoke
- Optional Beam Spread Filters can be applied without breaking IP Seal

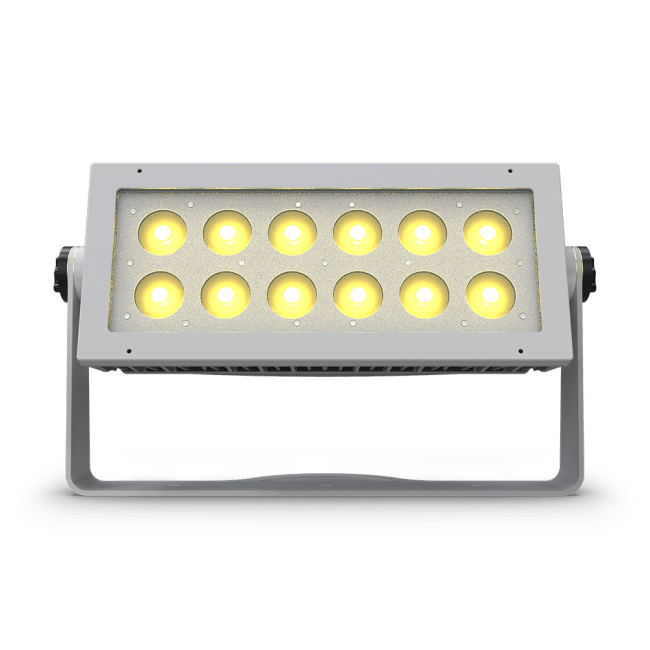

Ilumipanel ML,RGBL, 6° Optics, IP67,Off White
Produktnummer: ILU-ILUMIPANELML
inkl. mva.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | ILUMIPANELML |
Features
Description
Ilumipanel ML from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a range of easy-to-install beam spread filters to fit any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL (Red, Green Blue, Lime) four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors.
Specifications
Light Source & Optical Specifications
- Light Source: 12 LEDs (quad-color RGBL) 20 W, (1 A)
- Light Source Lifespan: 50,000 hours
- Installed Optics: 6°
- Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
- Beam Angle: 6.5°
- Field Angle: 11.6°
- Cutoff Angle: 19.9°
- Lumens: 7,045
- Base Illuminance: 10,926 lux @ 5 m
- Efficacy @ Full: 38 lm/W
- Color Temperature Presets: 1,800K – 10,000K
Construction & Physical Specifications
- Dimensions: 20.9 x 7.9 x 10.1 in (530 x 200 x 256 mm)
- Weight: 27.6 lb (12.6 kg)
- Fixture Color: Off white
- Housing Material: Cast aluminum
- Lens Cover: Impact resistant glass
- Mounting Options: Bracket, Hole Diameter 13M
Control Specifications
- Control Protocol: USITT DMX-512a, RDM
- Operating Modes: Selectable personalities
- Solid (1-Channel)
- Arc 1 (3-Channel)
- Arc 1+D (4-Channel)
- Arc 2 (4-Channel)
- Arc 2+D (5-Channel)
- Arc Full (8-Channel)
- Special 1 (15-Channel)
- Special 2 (9-Channel)
- Standalone Control: Yes
- Fixture setup: RDM Only
- Recommended control cable specification: Gepco DLC224
- Data Connection: 6.25 ft (1.9 m) Waterproof cable Bare-wired to hard-wired
Electrical System Specifications
- Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 184 W, 1.54 A @ 120 V, 60 Hz, PF: 0.98
- 178 W, 0.93 A @ 208 V, 60 Hz, PF: 0.91
- 177 W, 0.84 A @ 230 V, 50 Hz, PF: 0.90
- 177 W, 0.79 A @ 277 V, 60 Hz, PF: 0.79
- Power Supply: Electronic internal
- Dimmer: Electronic
- Power Connection: 6.25 ft (1.9 m) Waterproof cable Bare-wired to hard-wired
- Recommended Power Cable: 14 AWG (3x 2.08 mm2)
Thermal Specifications
- Cooling: Convection
- Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
- Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
- Maximum Surface Temperature: 167 °F (75 °C)
- Minimum Distance to Illuminated Surface: 3.28ft (1 m)
- Minimum Distance to Flammable Surface: 0.98ft (0.3 m)
- BTU Ratings:
- 628 BTUs/hr @ 120 V, 60 Hz
- 607 BTUs/hr @ 208 V, 60 Hz
- 604 BTUs/hr @ 230 V, 50 Hz
- 604 BTUs/hr @ 277 V, 50 Hz
Regulatory & Voluntary Qualification
- Certification Listings: MET, CE, RoHS, FCC, CB
- Impact Resistance Rating: IK10
- Vibration Rating: 3G
- Wind Load Rating – EPA: 1.044 ft²
- Environment: IP67, outdoor/wet, with pressure equalizing M12 GORE valve
- Please refer to the User Manual for more detailed information on installation.
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
- Installation Orientation: Any
Accessories
- Required: RDM Device
- Included: Filter Frame
- Optional: Medium Filter (20°), Wide Filter (40°), Very Wide Filter (55°), Asymmetrical Filter (60° x 10°)
Order Code
- Ilumipanel ML: ILUMIPANELML
- Ilumipanel ML Medium Spread Filter: ILUMIPANELMLM
- Ilumipanel ML Wide Spread Filter: ILUMIPANELMLW
- Ilumipanel ML Very Wide Spread Filter: ILUMIPANELMLVW
- Ilumipanel ML Asymmetrical Spread Filter: ILUMIPANELMLASYM
