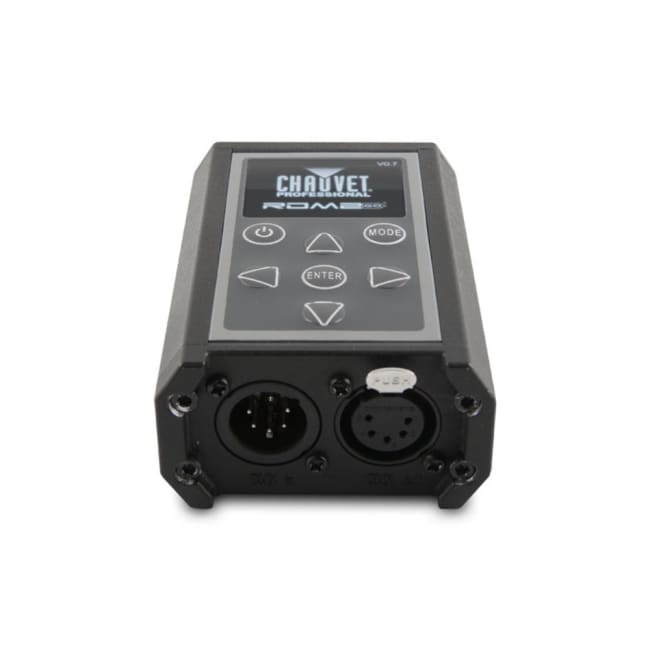

RDM2go,RDM/DMX Tool, IP20,Sort

Produktnummer: ILU-RDM2GO
Chauvet Professional
inkl. mva.

Generelle spesifikasjoner
Bruttovekt N/A kg
Produsentens varenummer RDM2GO

Features

  • Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
  • Easily address, locate and monitor RDM capable fixtures
  • Check DMX addressing, cabling, and store/playback basic snapshots
  • Address and set personalities of Ilumicode based architectural fixtures
  • Comes with connector adaptors, USB charging cord and belt clip pouch

Description

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.



Specifications

Dynamic Effects

  • Standalone Color Mixing: Yes
  • Color Temperature Presets (Ilumicode): Yes
  • Dim Modes (Ilumicode): 5
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)
  • Weight: 0.77 lb (0.35 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

Connections

  • Power Input: Micro USB-B Male
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 3 ft (0.91 m)

Control

  • Protocol(s): DMX, RDM, Ilumicode
  • DMX Channels: 1, 2, 3, 4, 5, 6 or 7
  • Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)

Electrical

  • Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
  • Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
  • Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Life: 8 hours
  • Battery Power: 3.7 V, 1,200 mAh

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location

What’s Included

  • RDM2go
  • Carry Pouch
  • 2 pc, 3- to 5-pin converters
  • 5-pin male to bare wire adaptor
  • USB-A Male to Micro USB-B Male (3 ft)


Accessories

  • Required
    • DMX Cables
  • Optional
    • DMX Cables

Order Code

  • RDM2go: RDM2GO
