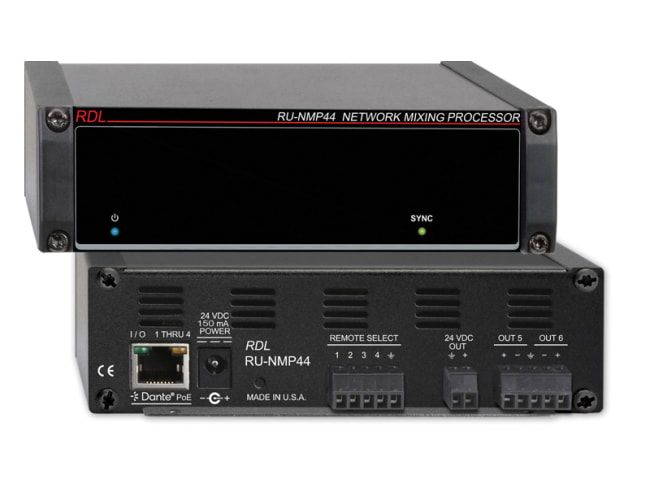

Network Mixing Processor - 4 x 4
Produktnummer: RU-NMP44
inkl. mva.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | RU-NMP44 |
- Six Networked 4 x 1 Virtual Audio Mixers Dante / AES67
- Four Dante Network Inputs Feed Each Mixer
- Four Mixer Outputs Feed Dante Network Channels
- Two Mixer Outputs Feed Balanced Line-Level Outputs
- A Pair of Mixers may be Configured for Stereo Audio
- Module is Configured and Adjusted Using Network Control Software
- Compatible with RDL Networked Remote Controls
- Provides Level Adjustment in 1 dB Steps for Each Input of Each Mixer
- Provides Level Adjustment in 1 dB Steps for the Output of Each Mixer
- Automatic (VOX) Priority Ducking Assignable on Each Virtual Mixer
- Priority May be assigned to One of the Four Received Network Channels
- Selectable High Pass Filters for the Priority Input
- Adjustable Ducking Threshold, Attenuation Level and Recovery Delay
- Provides Four Stored Preset Configurations for Routing, Mixing and Levels
- Presets Activated by Network Commands, at Power-Up, or Using RDL RC4M Remote Control
- LED Indicators for Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
