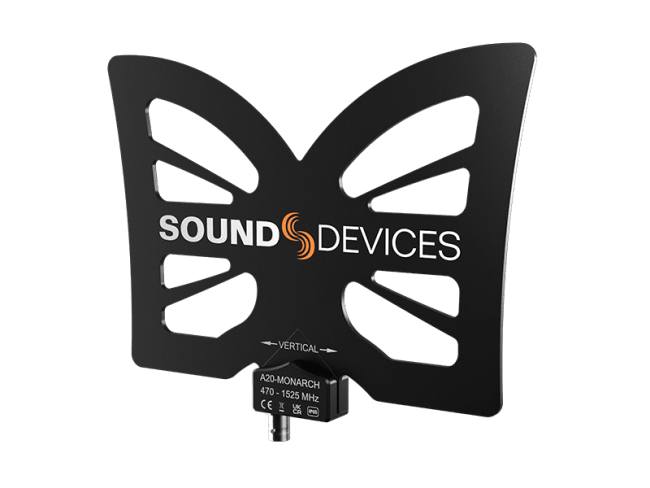

Single 470-1525MHz omni passive antenna w/clamp & arm

The A20-Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.

The A20-Monarch kit includes:

1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount

1x 30 in/75 cm BNC-M to BNC-M cable

1x 18 in/45 cm BNC-M to SMA-M cable

Specifications

Frequency range

470 MHz – 1600 MHz

Gain

2.2 dBi

Pattern

Omnidirectional

Return Loss

Better than 15 dB across entire 470 – 1600 MHz range

Mounting Threads

¼-20

Dimensions (H x W x D)

17.0 cm x 21.0 cm x 1.7 cm

(6.68 in x 8.26 in 0.67 in)

Weight

0.12 kg (unpackaged)

0.26 lbs (unpackaged)
