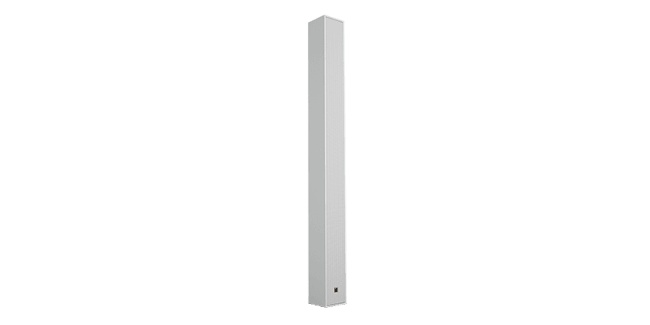

Høyttaler 2-veis colinear 3,5" - Hvit
| Attributter på høyttalere | |
|---|---|
| Bruksområde | Installasjon |
| Driftstype | LavOhm |
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produktets nettovekt | 9.4 Kg |
| Farge | Hvit |
| IP-klasse | IP55 |
| Opprinnelsesland | Frankrike |
| Produktserie | S-serie |
| Montering | Vegg |
| Høyttalertype | Søyle |
| Produsentens varenummer | SOKAW |
2-way passive enclosure
amplified by LA7.16i / LA2Xi / LA4X / LA12X
| Usable bandwidth (-10 dB) |
60 Hz – 20 kHz ([SOKA_60]) 100 Hz – 20 kHz ([SOKA]) 200 Hz – 20 kHz ([SOKA_200]) |
| Maximum SPL1 |
124 dB ([SOKA_60]) 130 dB ([SOKA]) 133 dB ([SOKA_200]) |
| Nominal directivity (-6 dB) |
Vertical: +5°/-21° |
| Transducers |
MF: 9 × 3.5″ cone drivers |
| Acoustical load |
LF: closed enclosure |
| Nominal impedance |
8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors |
1 x 4-point screw terminal |
| Rigging and handling |
6 M6 inserts for in-wall accessory and safety In-wall version |
| Weight (net) |
9.4 kg / 20.3 lb |
| Cabinet |
Premium grade Baltic beech and birch plywood |
| Front |
Coated steel grill |
| Finish |
Dark grey brown Pantone 426 C |
| IP |
IP55 |
