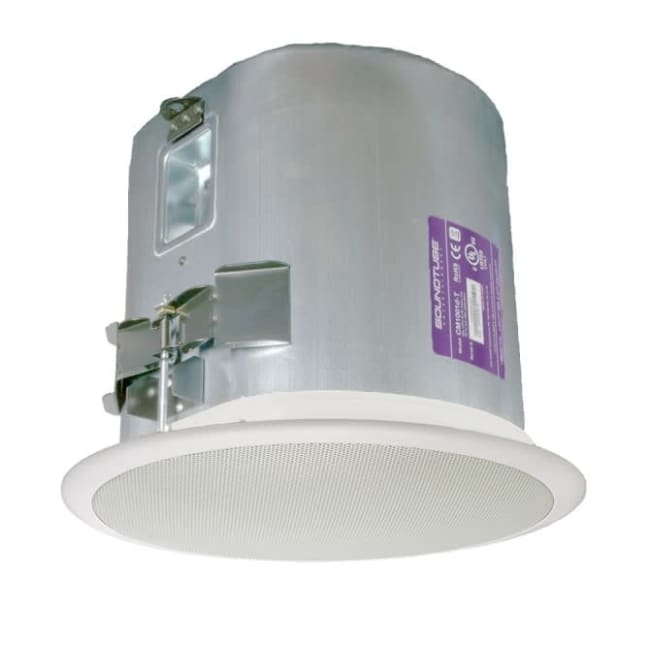

10" In Ceiling Subwoofer Kit in White, Deep Can, Txfrmr

SoundTube CM1001D In Ceiling Subwoofer Kit in White with Transformer

One 10 inch polypropylene cone with a butyl rubber surround on a reinforced ABS baffle. High output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience. Extra-large SoundTube-specific 12.9 liter steel deep can for quality bass response. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass position. Steel grille with protective powder-coated finish for lasting durability plus a tool-free strap for easy installation. Baffle-mounted, flared and tuned port for maximum efficiency and frequency response. UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.

Included accessories: Grille, UL-rated cover plate, four-pin Euroblock, paint shield and restraint cable, and choose between a color-coded (purple) tile bridge or a pre-construction bracket.

ColorWhite

UPC752830439689

ManufacturerSoundTube

Manufacturer's CategoryCMi In-Ceiling

Shipping Weight27.1 lbs / 12.29 kg

Carton Height17.5 in / 444.5 mm

Carton Length17 in / 431.8 mm

Carton Width17.5 in / 444.5 mm

CertificationsCE, RoHS, UL1480A, UL2043

Enclosure PropertiesABS Glass Fiber Reinforced, Injection Molded, Ported

Enclosure Volume790 cu in / 12945.78 cu cm

Included AccessoriesConduit Plate, Euroblock, Grille, Hanging Hardware, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket

Optional AccessoriesWhite Metal Grille (GRL-CM6/8-WH-1)|White Weather-Guard Grille (GRL-CM6/8-WG-WH)|White Flangeless Grill (GRL-CM6/8-FLG-WH)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX)

Source Inputs4 Pin 5.08mm Euroblock

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Backcan Diameter11.68 in / 296.7 mm

Backcan Height12.46 in / 316.5 mm

Crossover Frequency100.0 Hz

Cutout Width/Diameter12.75 in / 323.9 mm

Frequency Response (± 10 dB)41 Hz - 224 Hz

Frequency Response (± 3 dB)55 Hz - 118 Hz

Grille PropertiesStandard-Flange, Magnetic, Powder-Coated, White, Steel

Low Frequency Voice Coil1.38 in / 35 mm

Low Pass Crossover6dB per octave 1st order

Max. Ceiling Thickness1.91 in / 48.5 mm

Max. Continuous Power RMS150W

Max. Program Power300 W

Minimum Impedance (Ω Ohms)5.3 Ω

Minimum Ceiling Thickness0.25 in / 6.4 mm

Nominal Impedance (Ω Ohms)4 Ω

Subwoofer Driver10" Polypropylene Cone w/ Butyl Rubber Surround

Sensitivity dB @ 1W/1M89 dB

Sensitivity dB @ 2.83V/1M92 dB

Tap SelectorRotary Switch

Transformer Options25 / 70.7 / 100 V, 4 Ohm direct

Transformer Taps Max. Setting (25V/70.7V/100V)19W/150W/150W

Visible Diameter14.76 in / 374.9 mm

Visible Height1.08 in / 27.4 mm
