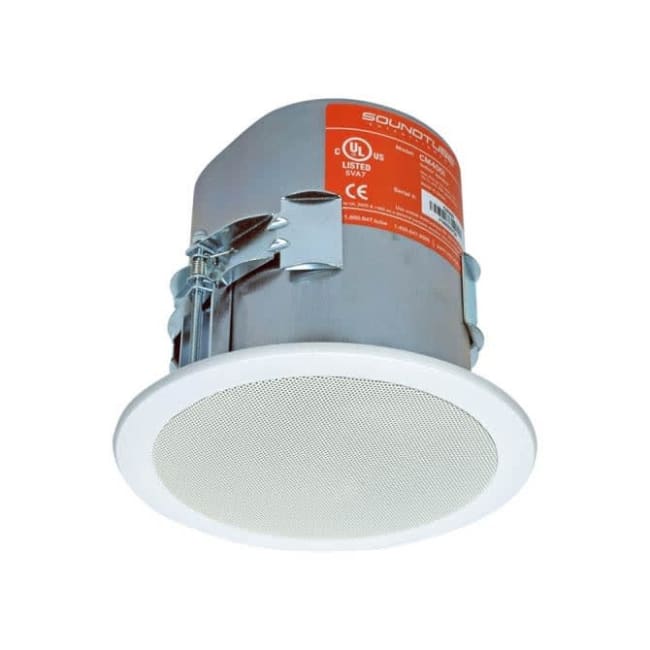

4" 2-way In Ceiling Speaker in White with BroadBeam Tweeter

SoundTube CM400i In Ceiling Speaker in White

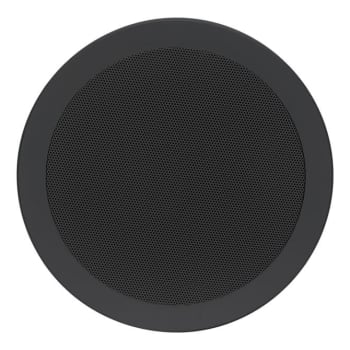

One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed- wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

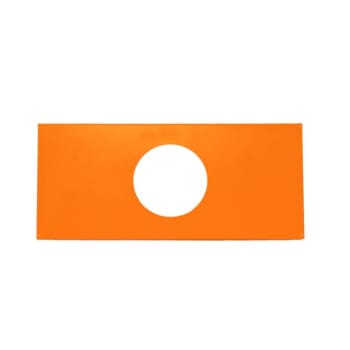

Included accessories: Paint mask, Euroblock connector and UL cover plate, and Choose between a color-coded (orange) tile bridge or a pre-construction bracket.

ColorWhite

UPC752830440388

ManufacturerSoundTube

Manufacturer's CategoryCMi In-Ceiling

Shipping Weight7.25 lbs / 3.29 kg

Carton Height9.25 in / 234.95 mm

Carton Length10 in / 254 mm

Carton Width10 in / 254 mm

CertificationsCE, RoHS, UL1480A, UL2043

Enclosure PropertiesABS, Ported, Steel

Enclosure Volume104 cu in / 1704.25 cu cm

Included AccessoriesConduit Plate, Euroblock, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket

Optional AccessoriesWH Grille (GRL-CM400-WH)|Flangeless Magnetic Grille (GRL-CM42EZ-II-RD-WH)|Tile Bridge (AC-CMEZ42-TB)|Pre-Construction Bracket (AC-CMEZ4-PCB)|Junction Box (AC-CM-JBOX)|Connector (EUROBLOCK)

Source Inputs4 Pin 5.08mm Euroblock

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Backcan Diameter6.05 in / 153.7 mm

Backcan Height6.55 in / 166.4 mm

Coverage Angle (±6dB @ 2kHz)65°

Crossover Frequency1.8 kHz

Cutout Width/Diameter6.6 in / 167.6 mm

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)4.6 and 4.3

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.6dB and 6.3dB

Frequency Response (± 10 dB)75 Hz - 22 kHz

Frequency Response (± 3 dB)90 Hz - 22 kHz

Grille PropertiesStandard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel

Low Frequency Voice Coil0.75 in / 19 mm

Low Pass Crossover12 dB per octave 2nd order

Max. Ceiling Thickness1.87 in / 47.5 mm

Max. Continuous Power RMS20W

Max. Program Power40 W

Minimum Impedance (Ω Ohms)3.3 Ω

Minimum Ceiling Thickness0.02 in / 0.6 mm

Network Type: High Pass12 dB per octave 2nd order

Nominal Impedance (Ω Ohms)4 Ω

Tweeter Driver1" Convex Aluminum w/ BroadBeam® Waveguide

Woofer Driver4" Polypropylene

Sensitivity dB @ 1W/1M87 dB

Sensitivity dB @ 2.83V/1M90 dB

Tap SelectorRotary Switch

Transformer Options25 / 70.7 / 100 V, 4 Ohm direct

Transformer Taps Max. Setting (25V/70.7V/100V)2.5W/20W/20W

Visible Diameter8.15 in / 207 mm

Visible Height0.47 in / 11.9 mm
