5.25" In Ceiling Speaker in White with a BroadBeam Tweeter

SoundTube CM500i In Ceiling Speaker in White

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. Rapid-installation, blind-mount, fixed wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

ColorWhite

UPC752830451285

ManufacturerSoundTube

Manufacturer's CategoryCMi In-Ceiling

Shipping Weight25.45 lbs / 11.54 kg

Carton Height15.25 in / 387.35 mm

Carton Length26 in / 660.4 mm

Carton Width14 in / 355.6 mm

CertificationsCE, RoHS, UL1480A, UL2043

Enclosure PropertiesABS Glass Fiber Reinforced, Injection Molded, Ported

Enclosure Volume349.6 cu in / 5728.92 cu cm

Included AccessoriesConduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge

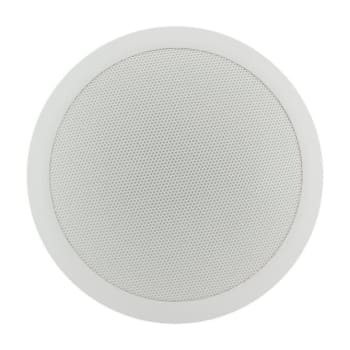

Optional AccessoriesWhite Grill (GRL-CM500-WH-1)|White Weather-Guard Grill (GRL-CM500-WG-WH)|White Flangeless Grille (GRL-CM5-FLG-WH)|Tile Bridge (AC-CM5-TB)|Pre-Construction Bracket (AC-CM5-PCB)|Cover Plate (CVR-CMI-BACKPLATE)|Connector (EUROBLOCK)|Junction Box (AC-CM-JBOX)

Source Inputs4 Pin 5.08mm Euroblock

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Backcan Diameter8.63 in / 219.2 mm

Backcan Height7.75 in / 196.9 mm

Crossover Frequency3.0 kHz

Cutout Width/Diameter9 in / 228.6 mm

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)4.8 and 9.5

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)6.1dB and 9.8dB

Frequency Response (± 10 dB)55 Hz - 22 kHz

Frequency Response (± 3 dB)75 Hz - 22 kHz

Grille PropertiesStandard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel

Low Frequency Voice Coil1 in / 25.4 mm

Low Pass Crossover12 dB per octave 2nd order

Max. Continuous Power RMS75W

Max. Program Power150 W

Minimum Impedance (Ω Ohms)4 Ω

Minimum Ceiling Thickness0.25 in / 6.4 mm

Network Type: High Pass12 dB per octave 2nd order

Nominal Impedance (Ω Ohms)8 Ω

Tweeter Driver1" Convex Titanium w/ BroadBeam® Waveguide

Woofer Driver5.25" Polypropylene

Sensitivity dB @ 1W/1M83 dB

Sensitivity dB @ 2.83V/1M86 dB

Tap SelectorRotary Switch

Transformer Options25 / 70.7 / 100 V, 8 Ohm direct

Transformer Taps Max. Setting (25V/70.7V/100V)5W/33W/33W

Visible Diameter10.71 in / 272 mm

Visible Height0.96 in / 24.4 mm
