8" 2way IP Dante/AES67 POE innfelt høytt,Hvit

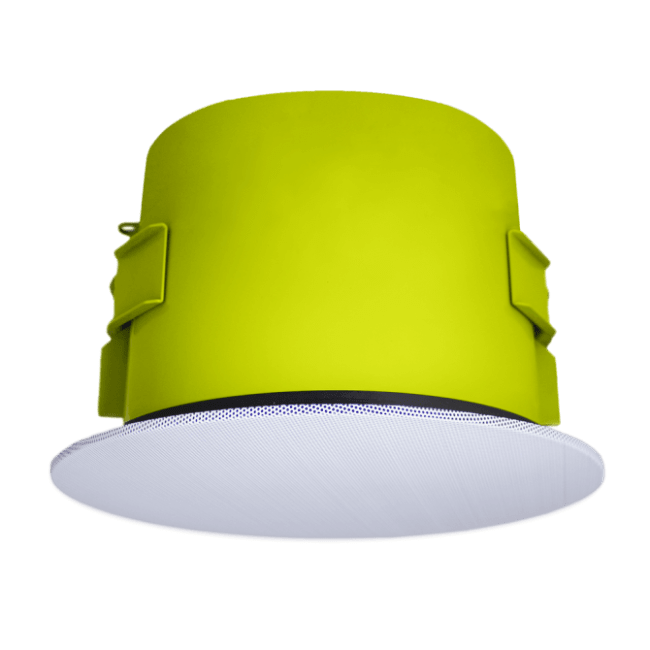

SoundTube IPD-CM82-BGM-II IP-Addressable Speaker in White

Dante®-enabled coaxial in-ceiling speaker incorporating one 8.0 inch (203 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 55 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4 mm). UL 60065 and 2043 listed.

ColorWhite

UPC644216226900

ManufacturerSoundTube

Manufacturer's CategorySTNet IP-Addressable and Dante Series

Shipping Weight12.6 lbs / 5.71 kg

Carton Height10.5 in / 266.7 mm

Carton Length13.25 in / 336.55 mm

Carton Width13 in / 330.2 mm

CertificationsCE, RoHS, UL2043, UL60065, ETL-C/US

Enclosure PropertiesABS, Steel

Included AccessoriesConduit Clamp, Cover Plate, Grille, Paint Mask

Optional AccessoriesTile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)

Source InputsRJ45 Ethernet Port

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Backcan Diameter9.67 in / 245.6 mm

Backcan Height8 in / 203.2 mm

Crossover Frequency3.0 kHz

Cutout Width/Diameter10.5 in / 266.7 mm

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)5.4 and 7.2

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.5dB and 8.6dB

Frequency Response (± 10 dB)55 Hz - 22 kHz

Frequency Response (± 3 dB)70 Hz - 18 kHz

Grille PropertiesStandard-Flange, Friction-Fit, White, Paintable, Painted, Steel

Low Frequency Voice Coil1 in / 25.4 mm

Low Pass Crossover12 dB per octave 2nd order

Max. Ceiling Thickness1.6 in / 40.6 mm

Minimum Ceiling Thickness0.04 in / 0.9 mm

Network Type: High Pass12 dB per octave 2nd order

Tweeter Driver1" Silk Dome w/ BroadBeam Ring®

Woofer Driver8" Polypropylene Cone w/ Butyl Rubber Surround

Visible Diameter298.5 mm

Visible Height8.6 mm
