5.25" 2way IP Dante/AES67 POE Kabinett høytt,Sort
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Farge | Sort |
| Dante | Ja |
| Produsentens varenummer | IPD-SM500i-II-BK |

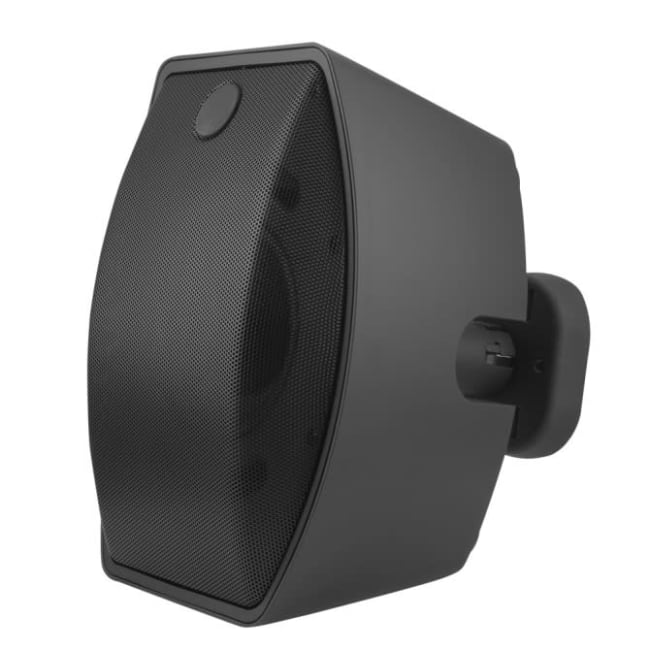

SoundTube IPD-SM500I-II IP-Addressable Speaker in Black
Dante®-enabled surface-mount speaker incorporating one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam® waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware for the IPD-SM500i-II is included and features SoundTube®'s proprietary Stealth™ bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.
ColorBlack
UPC748252172785
ManufacturerSoundTube
Manufacturer's CategorySTNet IP-Addressable and Dante Series
Depth10.48 in / 266.3 mm
Height11.4 in / 289.56 mm
Width/Diameter8.36 in / 212.26 mm
Shipping Weight9.5 lbs / 4.3 kg
Carton Height12.25 in / 311.15 mm
Carton Length13.25 in / 336.55 mm
Carton Width10.75 in / 273.05 mm
CertificationsCE, RoHS, UL2043, UL60065
Enclosure PropertiesABS Glass Fiber Reinforced
Included AccessoriesMounting Hardware, Safety Cable
Optional AccessoriesBlack Grille (GRL-SM500-II-BK) | 10" Safety Cable (AC-SM-SC10) | Black Mounting Bracket (AC-SM5-II-WP-BK) | Connector (EUROBLOCK) | Black Weatherboot (WEATHERBOOT-S-BK)
Source InputsRJ45 Ethernet Port
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Coverage Angle (±6dB @ 2kHz)75° Horizontal / 90° Vertical
Crossover Frequency3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)4.6 and 9.8
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.6 dB and 9.9 dB
Frequency Response (± 10 dB)60 Hz - 22 kHz
Frequency Response (± 3 dB)86 Hz - 22 kHz
Grille PropertiesAluminum, Powder-Coated
Low Frequency Voice Coil1.0 in / 25.4 mm
Low Pass Crossover12 dB per octave, 2nd order
Max SPL @ 1M98 dB
Network Type: High Pass12 dB per octave, 2nd order

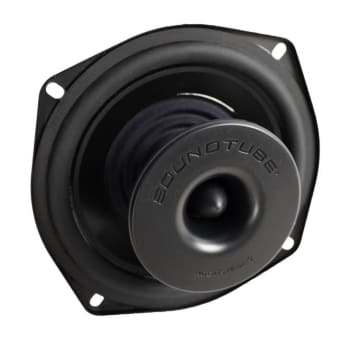

Tweeter Driver1" Convex Titanium w/ BroadBeam® Waveguide
Woofer Driver5.25" Polypropylene Cone w/ Butyl Rubber Surround
