8" 2way IP Dante/AES67 POE Kabinett høytt Værsikre -BK

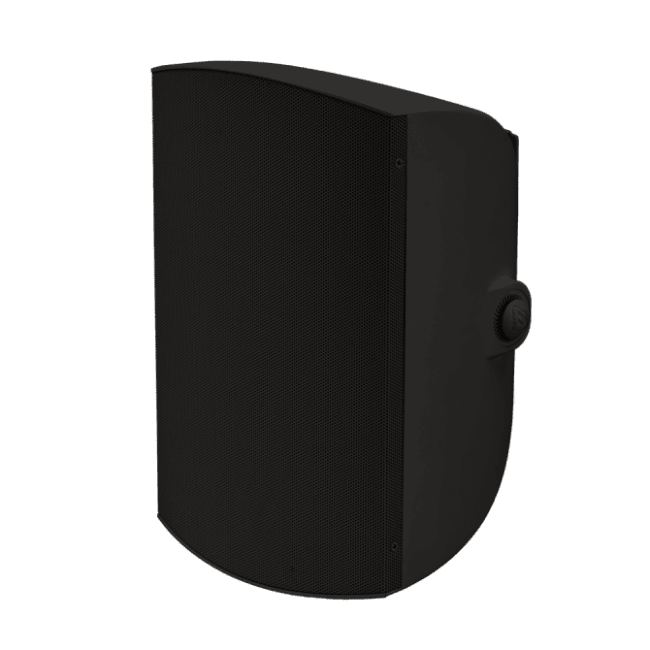

SoundTube IPD-SM82-EZ-II-WX IP-Addressable Speaker in Black

The IPD-SM82-EZ-II-WX is a Dante-enabled, weather-resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 8.0 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use.

ColorBlack

UPC752830447684

ManufacturerSoundTube

Manufacturer's CategorySTNet IP-Addressable and Dante Series

Depth9.88 in / 250.95 mm

Height18 in / 457.2 mm

Width/Diameter11.5 in / 292.1 mm

Shipping Weight13.9 lbs / 6.3 kg

Carton Height17 in / 431.8 mm

Carton Length21.5 in / 546.1 mm

Carton Width14.25 in / 361.95 mm

CertificationsCE, IP65, RoHS, UL60065

Enclosure PropertiesHigh Impact Polystyrene

Included AccessoriesMounting Assembly, Mounting Hardware, Port Plug, Safety Cable, Weather Plug, Weatherproof Strain Relief

Optional AccessoriesBlack Grille (GRL-SM82-BK) | Black Weatherboot (WEATHERBOOT-S-BK) | Port Plug (AC-SM8-PP)

Source InputsRJ45 Ethernet Port

IP RatingIP65

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Coverage Angle (±6dB @ 2kHz)70° Horizontal / 90° Vertical

Crossover Frequency2.5 kHz

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)5.2 and 12.0

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)6.2 dB and 10.8 dB

Frequency Response (± 10 dB)38 Hz - 20 kHz | Sealed: 50 Hz - 20 kHz

Frequency Response (± 3 dB)50 Hz - 20 kHz | Sealed: 70 Hz - 20 kHz

Grille PropertiesAluminum, Powder-Coated

Low Frequency Voice Coil1.5 in / 38.1 mm

Low Pass Crossover12 dB per octave, 2nd order

Max SPL @ 1M101 dB

Network Type: High Pass12 dB per octave, 2nd order

Tweeter Driver1" Soft Dome

Woofer Driver8" Polypropylene Cone w/ Butyl Rubber Surround

Subwoofer Driver8" Polypropylene Cone w/ Butyl Rubber Surround
