Full range line array - Series II - black

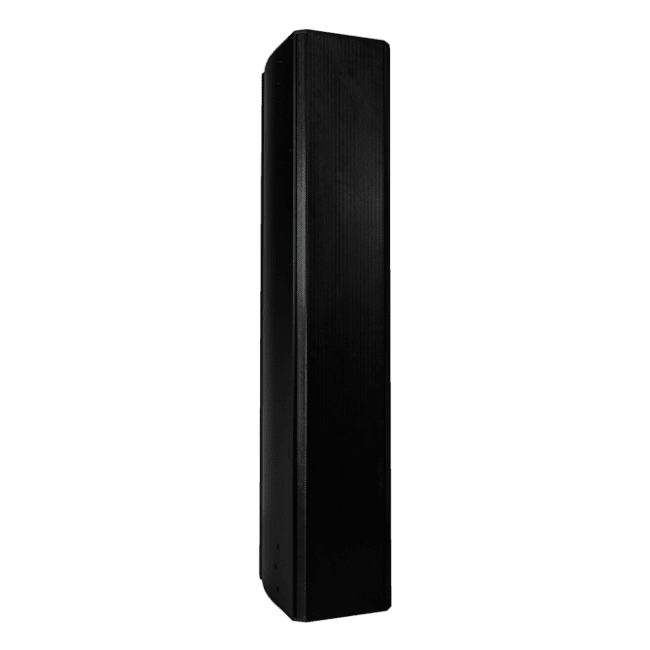

SoundTube LA880I-II Line Array Speaker in Black

The SoundTube LA880i-II is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 3-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and mid frequency pass bands allows the LA880i-II to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs many other single box line arrays. Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers and one 2.5-inch planar magnetics (ribbon) high frequency driver for extremely smooth high frequency response, the LA880i-II achieves superb coverage in an enclosure measuring only 7.91" x 40.87" x 11.99".

ColorBlack

UPC644216235407

ManufacturerSoundTube

Manufacturer's CategoryLA Line Array

Depth10.75 in / 273.05 mm

Height41 in / 1041.4 mm

Width/Diameter7.5 in / 190.5 mm

Shipping Weight61 lbs / 27.67 kg

Enclosure PropertiesAluminum, MDF, Painted, Plywood, Ported

Included Accessories4-Pin Euroblock, Safety Bracket, Safety Cable

Optional AccessoriesBlack Back Plate (AC-LA8-BACK-BK)|Black Side Connector Plates (AC-LA8-LINK-II-BK)|Black Top Mounted Fly Point Plates (AC-LA8-FLY-II-BK)|Pan and Tilt Surface Mount Bracket Kit (MM-024-BT or MM-022-BT)|Pole Mount Adapter (AC-PA-010)|Heavy Duty Pan and Tilt Surface Mount Bracket Kit (MM-120HD)|Fly Bracket (SAS-1WA-20)

Source Inputs4 Pin 5.08mm Euroblock, SpeakON

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Crossover Frequency1.1 kHz 2.5 kHz

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)6.9 and 12.3

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)9.2 dB and 10.9 dB

Frequency Response (± 10 dB)58 Hz - 22 kHz

Frequency Response (± 3 dB)71 Hz - 22 kHz

Grille PropertiesPowder-Coated, Steel

Low Frequency Voice Coil1 in / 25.4 mm

Low Pass Crossover12 dB per octave

Max. Continuous Power RMS300W

Max. Program Power500 W

Minimum Impedance (Ω Ohms)4.3 Ω

Mounting Depth12 in / 304.5 mm

Network Type: High Pass12 dB per octave

Nominal Impedance (Ω Ohms)4 Ω

Tweeter Driver2.5" Planar Magnetic Ribbon Tweeter

Midrange Driver(8) 2" Midrange Paper w/ Foam Surround

Woofer Driver(8) 4.5" Woofers Paper w/ Rubber Surround

Sensitivity dB @ 1W/1M88 dB

Sensitivity dB @ 2.83V/1M91 dB
