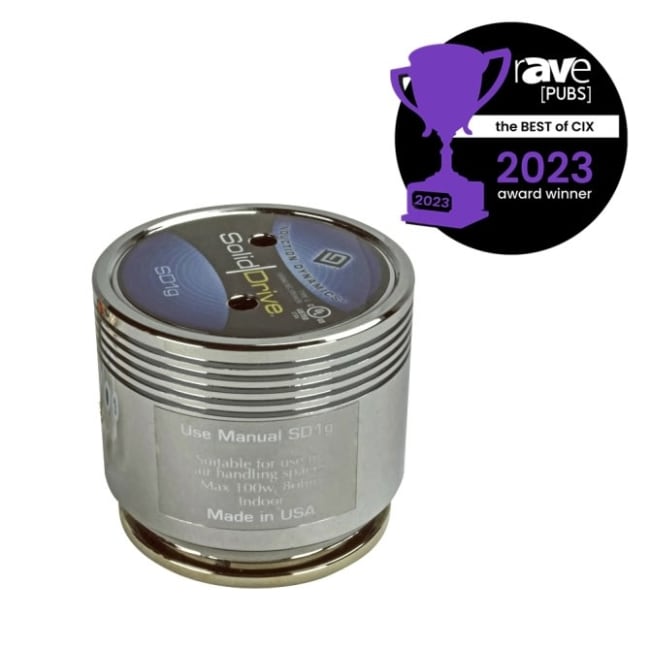

1.5" ACOUSTIC ACTUATOR GLASS Titanium

SolidDrive SD-1G Actuator in Titanium for Glass Surface

The SD-1g attaches to glass and other non-porous surfaces using a double-sided adhesive disk (included). Each SD-1g is designed for one channel of audio. An optional equalization module optimizes the SD-1g for use on glass. The SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate with very high-powered neodymium magnets and dual symmetrically opposed motors to convert audio signals into powerful vibrations. Those vibrations are transferred into solid surfaces through direct contact. High-quality, full-range sound is then radiated from the entire surface with a frequency response of 60 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.

ColorTitanium

UPC644216214303

ManufacturerSolidDrive

Manufacturer's CategoryThe Original SolidDrive

Height2.06 in / 52.32 mm

Width/Diameter2.3 in / 58.42 mm

Shipping Weight1.35 lbs / 0.61 kg

Carton Height5.5 in / 139.7 mm

Carton Length5.25 in / 133.35 mm

Carton Width5.25 in / 133.35 mm

CertificationsCE, RoHS, UL1480, UL2043

Enclosure PropertiesAnodized Aluminum

Included AccessoriesAdhesive Pad

Optional AccessoriesTitanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Glass (PEM-G)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR)

Source InputsWire Leads

TAA Compliant (Trade America)Yes

BAA Compliant (Made in USA)Yes

Coverage Angle (±6dB @ 2kHz)120°

Frequency Response (± 10 dB)60 Hz - 15 kHz Nominal w/o EQ

Frequency Response (± 3 dB)80 Hz - 10 kHz Nominal w/o EQ

Max. Continuous Power RMS30 W

Max. Program Power50 W w/ 100 Hz 12 dB octave high-pass

Minimum Impedance (Ω Ohms)8 Ω

Nominal Impedance (Ω Ohms)8 Ω

Sensitivity dB @ 1W/1M73.5 dB

Sensitivity dB @ 2.83V/1M70 - 75 dB
