50 Watts Per Channel Class D Amplifier

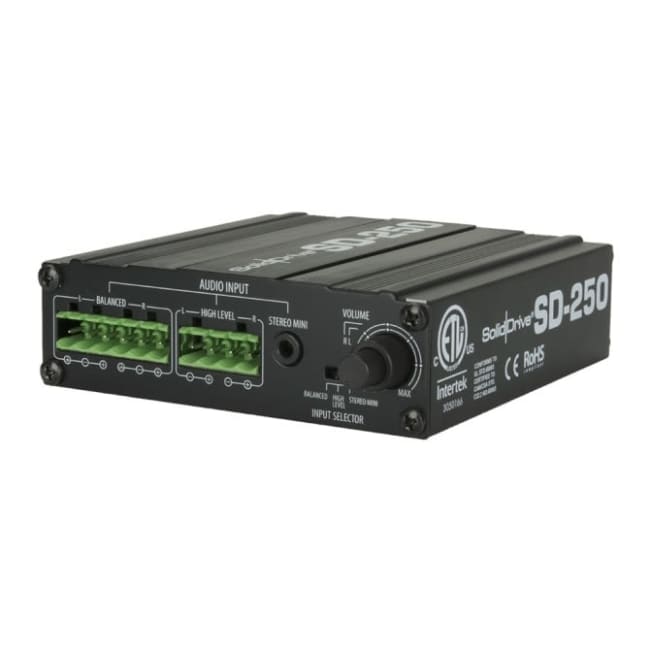

SolidDrive 50 Watts Per Channel Class D Amplifier

The SolidDrive SD-250 is an ultra compact 2-channel amplifier with extra heat sink surfaces for extended duty at full power. The amp is rated at 50 watts per channel and can run in stereo, mono, or bridged mono. But most importantly it has custom electronic EQs for glass, sheet rock, wood, or bypass. Having the correct power and the right EQ will make the AD sound its best. The amp can utilize balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock inputs.

ColorBlack

UPC644216215201

ManufacturerSolidDrive

Manufacturer's CategoryAmplifier

Depth4.9 in / 124.46 mm

Height1.2 in / 30.48 mm

Width/Diameter3.9 in / 99.06 mm

Shipping Weight3.1 lbs / 1.41 kg

Carton Height3.5 in / 88.9 mm

Carton Length10.25 in / 260.35 mm

Carton Width9.5 in / 241.3 mm

CertificationsCE, RoHS, UL60065, ETL-C/US, FCC

Enclosure PropertiesAluminum

Included Accessories3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply, Stereo RCA Adapter

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Input Impedance47K Ω Line Level, 600 Ω Balanced

Power Requirements32 v DC

Voltage Gain34 dB

Frequency Response (± 3 dB)20 Hz - 20 kHz
