5.25" 2-way Extreme Weather Outdoor Surface Mount Spkr,White

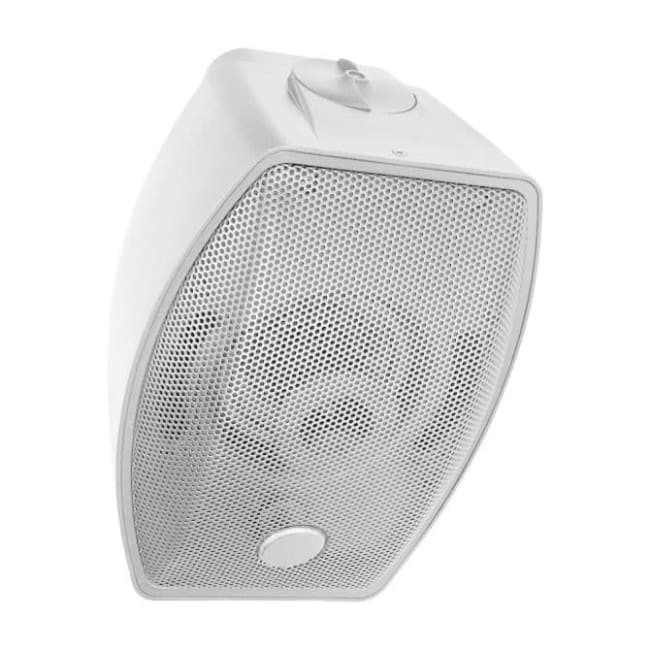

SoundTube SM590i-II-WX Outdoor Surface Mount Speaker in White

SoundTube®'s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille and an aluminum grille with powder-coat finish to keep water from the drivers and internal electronics in even the most extreme weather conditions. The speaker includes a higher power output for long throw and high SPL requirements as well as one 5.25-inch polypropylene woofer and one 1.0 inch, tractrix horn-loaded, convex aluminum dome tweeter in a ported enclosure. SM590I-II-WX has a 87.0 dB average sensitivity which offers high output capabilities and reduced amplification costs. The speaker has an easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position and utilizes patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Utilizing the new SM590I-II Stealth™ bracket mounting systems as well as vertical and horizontal pivoting allow the SM590I-II-WX to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, wall mount bracket and terminal weather boot are included. IP-Rating: IP44.

ColorWhite

UPC644216203901

ManufacturerSoundTube

Manufacturer's CategorySMi Surface Mount

Height11.4 in / 289.6 mm

Width/Diameter8.36 in / 212.3 mm

Shipping Weight10.5 lbs / 4.76 kg

Carton Height14 in / 355.6 mm

Carton Length13.5 in / 342.9 mm

Carton Width10.5 in / 266.7 mm

CertificationsCE, IP55, RoHS

Enclosure PropertiesABS Glass Fiber Reinforced, Injection Molded, Ported

Enclosure Volume349.6 cu in / 5728.92 cu cm

Included AccessoriesEuroblock, Mounting Hardware, Safety Cable, Terminal Weather Boot

Optional AccessoriesWhite Grille (GRL-SM500-II-WX-WH)|10" Safety Cable (AC-SM-SC10)|White Mounting Bracket (AC-SM5-II-WP-WH)|Connector (EUROBLOCK)|White Weatherboot (WEATHERBOOT-S-WH)

Source Inputs4 Pin 5.08mm Euroblock

IP RatingIP44

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Crossover Frequency3.0 kHz

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)5.7 and 9.3

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)6.0dB and 9.7dB

Frequency Response (± 10 dB)69 Hz - 22 kHz

Frequency Response (± 3 dB)100 Hz - 22 kHz

Grille PropertiesAluminum, Powder-Coated, Weatherproof

Low Frequency Voice Coil1 in / 25.4 mm

Max. Continuous Power RMS80W

Max. Program Power160 W

Minimum Impedance (Ω Ohms)7 Ω

Mounting Depth10.48 in / 266.2 mm

Network Type: High Pass12 dB per octave 2nd order

Nominal Impedance (Ω Ohms)8 Ω

Tweeter Driver1" Convex Titanium Horn-Loaded

Woofer Driver5.25" Polypropylene

Sensitivity dB @ 1W/1M87 dB

Sensitivity dB @ 2.83V/1M87 dB

Tap SelectorRotary Switch

Transformer Options25 / 70.7 / 100 V, 4 Ohm direct

Transformer Taps Max. Setting (25V/70.7V/100V)8W/64W/64W
