Engineered for commercial AV environments, the Infinium™ CT1 delivers ultra-low latency, high-fidelity audio to unlimited Auracast™ enabled devices—including hearing aids, cochlear implants, headphones, and Infinium™ receivers.

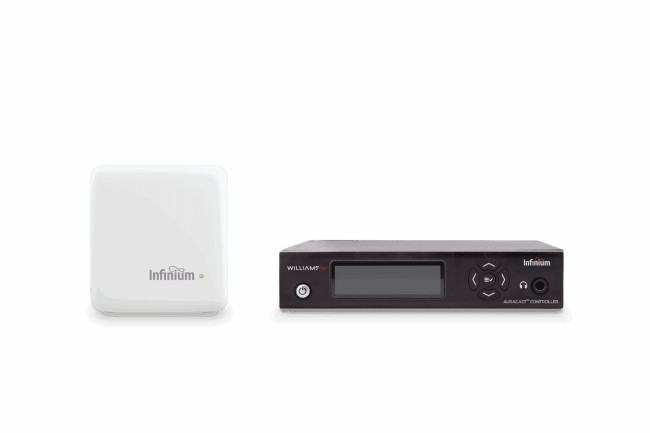

Perfect for lecture halls, transportation hubs, theaters, and other large-scale venues, the CT1 is a modular solution featuring a discreet transmitter and a rack-mount-ready controller.
Key Features
- Professional AV Controller. Seamlessly integrates into AV racks with both analog and Dante® inputs. Configure locally via the front panel or remotely through a web interface.
-
Compact Transmitter. Installs easily with a single CAT cable carrying both audio and power. Delivers omnidirectional audio coverage up to 100 meters (328 ft).
System Includes
(1) BA CT1 Contoller & transmitter and 10 ft (3m) Ethernet cable
Features
Williams AV’s Infinium™ is a professional-grade broadcast audio solution that empowers venues to deliver ADA-compliant, multilingual, and assistive listening experiences with ease. Designed for modern AV environments, it enables clear, low-latency audio to guests using either Infinium™ receivers or their own Auracast™ enabled hearing aids, cochlear implants, or headphones.
Key Advantages
- Modular System Design – The transmitter and controller are housed separately, allowing flexible placement and smooth integration into AV racks.
- Simplified Transmitter Installation – The transmitter requires just a single CAT cable for power and audio, reducing setup time for integrators.
- Remote & Onsite Management – Configure, monitor, and troubleshoot via the front panel or web interface, with the added ability to listen to audio outside the coverage area.
- Auracast™ Compatibility – Supports a wide range of personal listening devices, and a dedicated Infinium receiver, ensuring inclusive audio access.
- Dante® Integration – Easily connects to professional AV networks, enabling efficient audio routing and management.
Ideal for Use In
- Theaters & Performing Arts Venues
- Classrooms & Lecture Halls
- Airports & Transportation Hubs
- Fitness Centers & Gyms
With Infinium™, venues can break down barriers to audio access and deliver a seamless, high-performance listening experience for every guest.
Controller
| Dimensions | 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 14.6 cm x 4.4 cm) |
| Weight | 2.3 lbs (1.04 kg) |
| Color | Black |

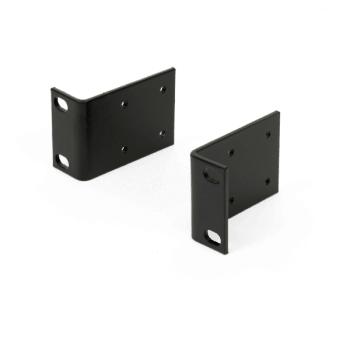

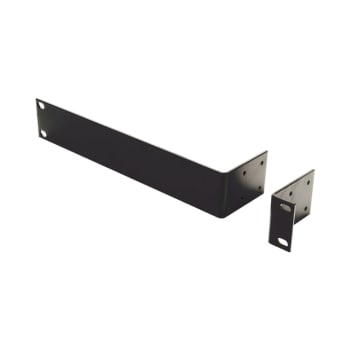

| Installation Configurations | Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits Shelf: Can sit on shelf, table, podium, etc. |
| Temperature Range – Operating | +32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| Power Button | Push On/Push Off latching power button. |
| Ethernet Control Port | (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T |
| Front Panel Display | 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections. |
| Dante | (1x) RJ-45 jack. |
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector |
| PoE Power Out | PoE |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme |
| Warranty | 2-year parts and labor |

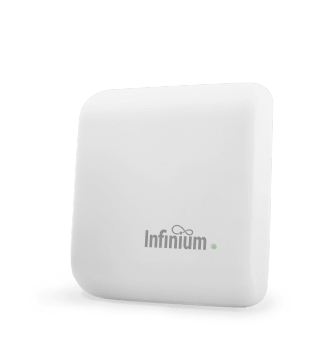

Transmitter
| Dimensions | 4.7″ W x 5.0″ D x 1.19″H (11.9 cm x 12.7 cm x 3 cm) |
| Weight | 0.4 lbs (0.18 kg) |
| Color | White |
| Installation Configurations | Ceiling Mount, Wall Mount, Shelf |
| Temperature Range – Operating |
+32° F to +122° F (0° C to 50° C) |
| Temperature Range – Storage | -4° F to +158° F (-20° C to 70° C) |
| Power | PoE (Input) |
| Connection | RJ45 (1x) with audio, control and PoE |
| Power ON Indicator | Programmable LED |
| Transmitter Power Output | Programmable |
| Compliance Approvals | FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan) |
| Warranty | 2-year parts and labor |
Cable
| Ethernet Cable | 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant |
Warranty
2 Years
