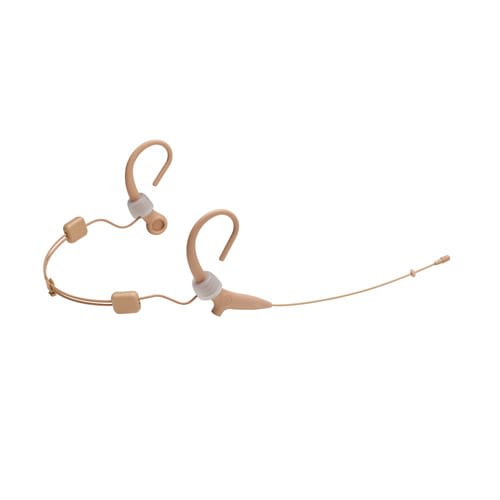

Mikrofon Kondensator Omni Bøyle for ATW3200/5000

Produktnummer: BP892xcH-TH

inkl. mva.



  • Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
  • BP892xcH-TH is beige colour model and constructed of hypoallergenic materials
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
  • Ergonomic under-ear design - the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
  • Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
  • Handles high sound pressure levels with ease
  • Equipped with cH-style screw-down 4-pin termination for Audio-Technica wireless systems
  • Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that's worn on both ears for maximum stability and comfort

    The BP892xcH-TH includes a 1.4 m permanently attached miniature cable. Its end connects to a screw-down 4-pin connector. The connector is also compatible with Audio-Technica cH type body-pack transmitters.

    BP892xcH-TH Specifications

    Fixed-charge back plate, permanently polarized condenser
    Polar Pattern
    Frequency Response
    20 ~ 20,000 Hz
    Open Circuit Sensitivity
    -43 dB (7.2 mV) re 1V at 1 Pa
    Maximum Input Sound Level
    136 dB SPL, 1 kHz at 1% T.H.D.
    Signal-To-Noise Ratio
    63 dB, 1 kHz at 1 Pa
    Current Consumption
    0.1mA typical at 5V
    Power Supply
    2.5 ~ 11V
    Microphone, boom & earpiece: 2.6 g
    Microphone: 9.5 mm long, 2.6 mm diameter
    Boom: 98.5 mm long, 1.07 mm diameter
    Output Connector
    cH-style screw-down 4-pin connector
    1.4 m long, 1.6 mm diameter, 2-conductor shielded cable
    Accessories Furnished
    AT8440 cable clip;
    AT8464x dual-ear mount;
    AT8157 windscreens;
    AT8171 windscreens;
    two AT8156 element covers;
    moisture guard;
    carrying case
Farge Beige
Karakteristikk Omnidireksjonell
Elementtype Kondensator
Frekvensrespons 20 - 20 000 Hz
Dynamisk Range (1 kHz at Max SPL) 104 dB
Produkttype Hodebøyle
Tilkoblingstype Mini-Hirose (cH)
Generelle spesifikasjoner
Produktets nettovekt 26.0 Kg
Produsentens varenummer BP892xcH-TH
Bruttovekt N/A kg
