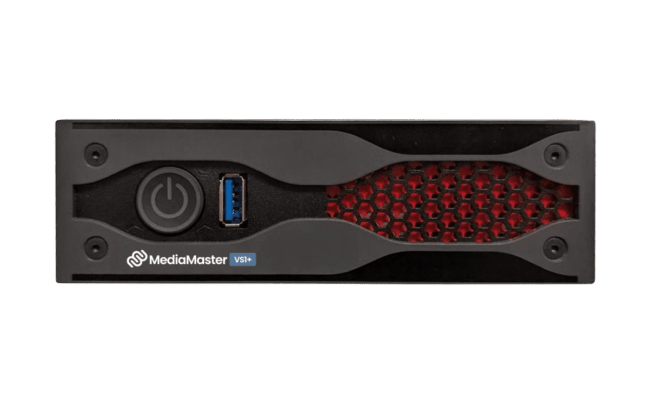

MediaMaster VS1+
VS1+ delivers stunning 4K playback in a compact, lightweight, and robust package—perfect for touring professionals who need power, flexibility, and reliability on the road.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | CS500001 |
Hardware Specifications:
Processor: Intel i7, 2.8 GHz
Threads (Cores): 8 (4)
RAM: 16GB (2x 8GB Crucial)
RAM Type: DDR4 3200 MHz SODIMM
Graphics Card: Intel Integrated Graphics
Power Input: powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): TBC
System Drive: 500GB SSD
Storage Drive: Uses System Drive
System Restore Drive: No
Interface Output: 1 x HDMI 2K
Media Output: 1 x HDMI 4K
Ethernet Output: 1 x 2,5 GB/s
Front USBs: 1 – USB 3.0 A Type
Rear USBs: 2 x USB 3.0 A Type , 2 x USB-C
Software Specifications:
Operating System: Windows 11 Pro
MediaMaster Software: Pro
Playback Layers: 48
Surfaces: 250
Outputs: 1
Presets: 4096
LED Mapper: Yes
King Net Mapper: Yes
Video Mapper: Yes
Soft Edge / Geometric Correction: Yes
NDI®5 : Yes
CITP/MSEX: Yes
GDTF Personality Export: Yes
Factory System Restore: Yes
Control:
Art-Net: Yes
sACN: Yes
Stand Alone Keyboard Control: Yes
DMX Control: Optional MagicDMX
Front Panel Control: No
Boxed Weights and Dimensions:
Width: 515mm (20.28 inches)
Depth: 235mm (9.25 inches)
Height: 100mm (3.93 inches)
Weight: 1.66 kg (3.66 lb)
Unit Weights and Dimensions:
Width: 143mm (5.63 inches)
Depth: 195mm (7.68 inches)
Height: 43mm (1.69 inches) – 1U High
Weight: 1.28 kg (2.82 lb)
