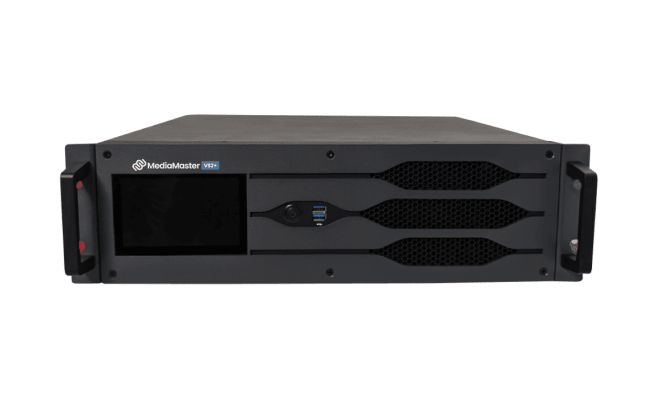

MediaMaster VS2+
Built for the demands of rental houses, this system is strong, reliable, and effortless to operate. Featuring 2 x 4K outputs powered by MediaMaster Pro, it delivers exceptional performance with uncompromising dependability.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | CS500002 |
Hardware Specifications:
Processor: Intel i5, 13500
Threads (Cores): 20 (14)
RAM: 16gb (2x 8GB) Crucial
RAM Type: DDR4 3200 MHz SODIMM
Graphics Card: NVIDIA RTX A2000 12GB NVIDIA T400 4GB
Power Input: powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): TBC
System Drive: SSD 1 TB
Storage Drive: Uses System Drive
System Restore Drive: USB 128 Gb
Interface Output: 2 x MDP – 4K
Media Output: 2 x MDP – 4K
Ethernet Output: 2 x RJ45 2.5 Gigabit Lan
Front USBs: 2 – USB3
Rear USBs: 5 x USB 3.0 A Type , 1 x USB-C
Inputs: 2x/4x SDI (Optional) 2x/4x HDMI (Optional)
Software Specifications:
Operating System: Windows 11 Pro
MediaMaster Software: Pro
Playback Layers: 48
Surfaces: 250
Outputs: 2
Presets: 4096
LED Mapper: Yes
King Net Mapper: Yes
Video Mapper: Yes
Soft Edge / Geometric Correction: Yes
NDI®5 : Yes
CITP/MSEX: Yes
GDTF Personality Export: Yes
Factory System Restore: Yes
Control:
Art-Net: Yes
sACN: Yes
Stand Alone Keyboard Control: Yes
DMX Control: Optional MagicDMX
Front Panel Control: Yes
Boxed Weights and Dimensions:
Width: 600mm (23.62 inches)
Depth: 550mm (21.65 inches)
Height: 300mm (11.81 inches)
Weight: 14.2 kg (31.30 lb)
Unit Weights and Dimensions:
Width: 430mm (5.63 inches)
Depth: 405mm (7.68 inches)
Height: 135mm (1.69 inches) – 3U High
Weight: 10.4 kg (22.92 lb)
