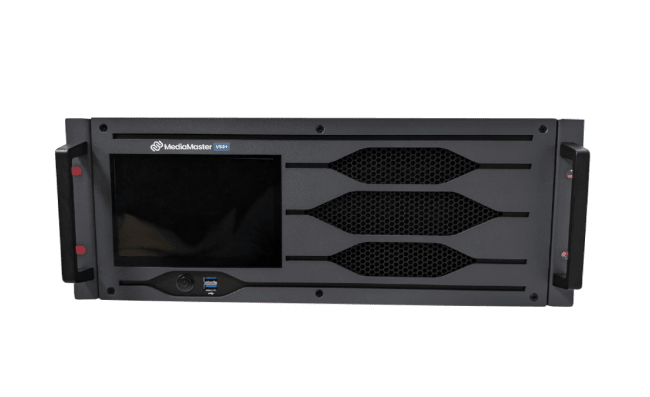

MediaMaster VS4+

Hardware Specifications:

Processor: AMD Ryzen Threadripper PRO 5955WX

Threads (Cores): 32(16)

RAM: 32GB (4x 8GB) Crucial

RAM Type: DDR4 3200 MHz SODIMM

Graphics Card: nVIDIA RTX A4000 16GB / NVIDIA T400 4GB

Power Input: powerCON TRUE1 110 to 240 VAC

Max Power Consumption (mains): TBC

System Drive: SSD 1 TB

Storage Drive: SSD 1 TB

System Restore Drive: USB 128 GB

Interface Output: 2x DisplayPort – 4K

Media Output: 4x DisplayPort – 4K

Ethernet Output: 2x 10Gb/s (cat6A)

Front USBs: 2 – USB 3.0 A Type

Rear USBs: 4 x USB 3.0 A Type , 2 x USB-C

Sync: NVIDIA PNY Quadro Sync 2

Audio: 1- Audio/SMPTE/LTC/BPM

DMX In/Out: Optional

Genlock: Optional

Input: 2x/4x/8x SDI (optional) / 2x/4x/8x HDMI (optional)

Software Specifications:

Operating System: Windows 11 Pro

MediaMaster Software: Pro

Playback Layers: 48

Surfaces: 250

Outputs: 4

Presets: 4096

LED Mapper: Yes

King Net Mapper: Yes

Video Mapper: Yes

Soft Edge / Geometric Correction: Yes

NDI®5 : Yes

CITP/MSEX: Yes

GDTF Personality Export: Yes

Factory System Restore: Yes

Control:

Art-Net: Yes

sACN: Yes

Stand Alone Keyboard Control: Yes

DMX Control: Yes

Front Panel Control: Yes

Boxed Weights and Dimensions:

Width: 600mm (23.62 inches)

Depth: 810mm (31.88 inches)

Height: 360mm (14.17 inches)

Weight: 20.3 kg (44.75 lb)

Unit Weights and Dimensions:

Width: 425mm (16.73 inches)

Depth: 625mm (24.60 inches)

Height: 177mm (6.96 inches) – 4U High

Weight: 16 kg (35.27 lb)
