LF Directivity Element line array,Sort, Bruk m/A880i-II

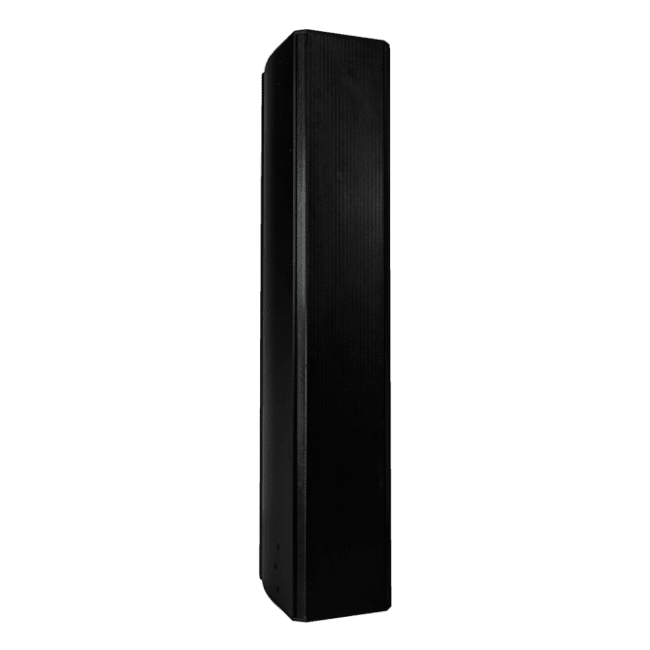

SoundTube LA808I Line Array Speaker in Black

NOT a subwoofer, the SoundTube LA808i is designed to increase the directivity of low frequencies in SoundTube®'s Line Array system. It can be used only in conjuction with the LA880i 3-way line array. The use of the LA808i is recommended in spaces that have a large reverberation time. When a single unit is added to the LA880i, directivity of low frequencies is increased by up to an octave lower than with the LA880i alone. The product's dimensions are identical to those of the LA880i. The LA808i must be placed either directly above or directly below the LA880i in order for the system to work properly. If desired, two LA808i units can be added: one above the LA880i and one below. Coverage Angle: (-6 dB @ 2 kHz) 103 horizontal, 29 vertical | (-6 dB @ 10 kHz) 77 horizontal, 51 vertical | (Avg. 2 to 10 kHz) 90 horizontal, 60 vertical (200-10k)

ColorBlack

UPC644216198801

ManufacturerSoundTube

Manufacturer's CategoryLA Line Array

Height81.8 in / 2077.72 mm

Width/Diameter8.24 in / 209.3 mm

Shipping Weight56 lbs / 25.40 kg

Carton Height12 in / 304.8 mm

Carton Length44 in / 1117.6 mm

Carton Width16 in / 406.4 mm

CertificationsCE, RoHS

Enclosure PropertiesMDF, Painted, Plywood

Included Accessories4-Pin Euroblock, Jumper Cable, LINK Side Plates, Safety Bracket, Safety Cable

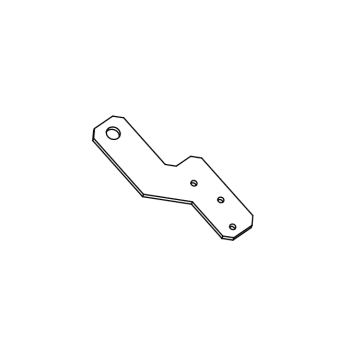

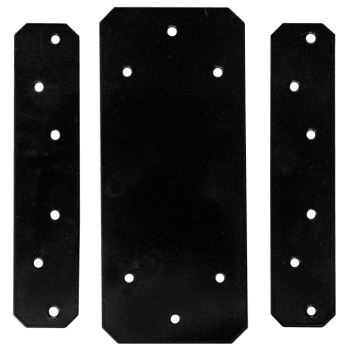

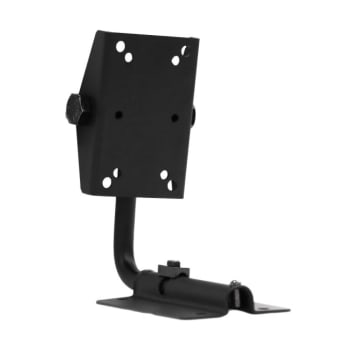

Optional AccessoriesBlack Back Plate (AC-LA8-BACK-BK)|Black Side Connector Plates (AC-LA8-LINK-II-BK)|Black Top Mounted Fly Point Plates (AC-LA8-FLY-II-BK)|Pan and Tilt Surface Mount Bracket Kit (MM-024-BT or MM-022-BT)|Pole Mount Adapter (AC-PA-010)|Heavy Duty Pan and Tilt Surface Mount Bracket Kit (MM-120HD)|Fly Bracket (SAS-1WA-20)

Source Inputs4 Pin 5.08mm Euroblock, SpeakON

TAA Compliant (Trade America)No

BAA Compliant (Made in USA)No

Coverage Angle (±6dB @ 2kHz)103° Horizontal 29° Vertical

Crossover Frequency500 Hz

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)9.1

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)12.6dB

Frequency Response (± 10 dB)75 Hz - 22 kHz

Frequency Response (± 3 dB)83 Hz - 22 kHz

Grille PropertiesPowder-Coated, Steel

Low Frequency Voice Coil1 in / 25.4 mm

Low Pass Crossover12 dB per octave

Max. Continuous Power RMS300 W

Max. Program Power500 W

Mounting Depth10.8 in / 274.3 mm

Network Type: High Pass12 dB per octave

Nominal Impedance (Ω Ohms)4 Ω

Woofer Driver(8) 4.5" Woofers Paper w/ Rubber Surround

Sensitivity dB @ 1W/1M87 dB

Sensitivity dB @ 2.83V/1M90 dB
