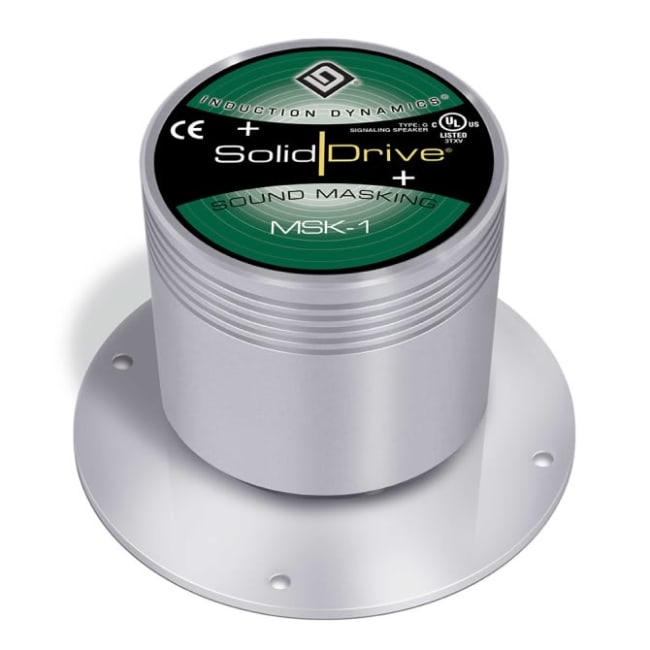

MSK-1 Surface Mount Actuator & Transformer f/Drywall Surface

SolidDrive MSK-1 Actuator for Drywall Surface

The MSK-1 by SolidDrive is an economical hidden planar-source sound transducer designed for sound masking in drywall applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1 uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The MSK-1 must be installed using the SD1 mounting bracket, sold separately. Different bracket widths are available to accommodate in-wall stud spacing.

Additional optional accessories: SD1-BR16, SD1-BR16-R

ColorTitanium

UPC644216212804

ManufacturerSolidDrive

Manufacturer's CategorySound Masking SolidDrive

Height2.02 in / 51.31 mm

Width/Diameter2.3 in / 58.42 mm

Shipping Weight2 lbs / 0.91 kg

Carton Height5.5 in / 139.7 mm

Carton Length5.5 in / 139.7 mm

Carton Width5.25 in / 133.35 mm

CertificationsRoHS, UL1480, UL2043

Enclosure PropertiesAnodized Aluminum

Included AccessoriesConduit Clamp

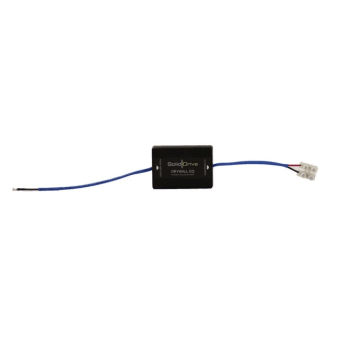

Optional AccessoriesTitanium Heat Sink (SD1-HS-TI)|12" On-Center Bracket Assembly (SD1-BR12)|16" On-Center Rear-Install Drywall Bracket assembly for SolidDrive (SD1-BR16-R)|16" On-Center Bracket Assembly (SD1-BR16)|24" On-Center Bracket Assembly (SD1-BR24)|Passive Equalization Module - Drywall (PEM-DW)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR)

TAA Compliant (Trade America)Yes

BAA Compliant (Made in USA)Yes

Coverage Angle (±6dB @ 2kHz)120°

Frequency Response (± 10 dB)70 Hz - 15 kHz

Frequency Response (± 3 dB)80 Hz - 10 kHz

Max. Continuous Power RMS30W

Max. Program Power50 W

Nominal Impedance (Ω Ohms)8 Ω

Sensitivity dB @ 1W/1M69 dB

Sensitivity dB @ 2.83V/1M69 dB
