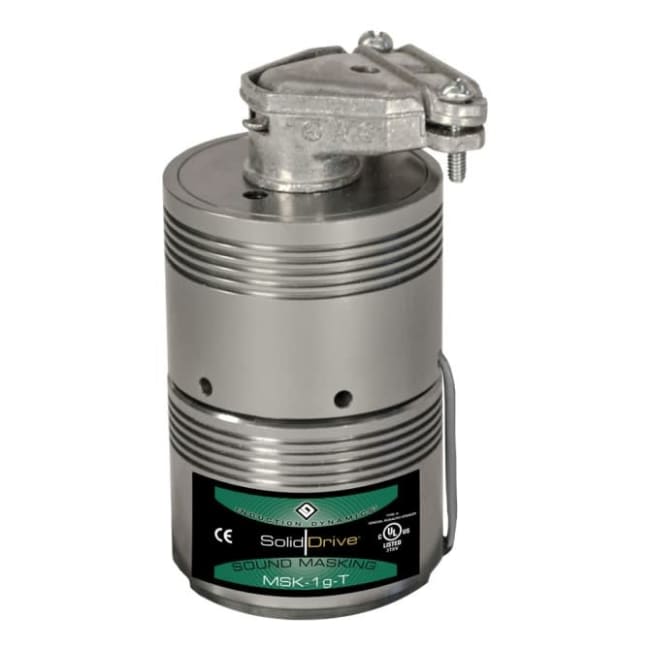

MSK-1 Surface Mount Actuator & Transformer f/Glass Surfaces

SolidDrive MSK-1G-T Actuator for Glass Surface

The MSK-1g-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1g-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations and is mounted to glass using an adhesive disk.

ColorTitanium

UPC644216213009

ManufacturerSolidDrive

Manufacturer's CategorySound Masking SolidDrive

Height4.75 in / 120.65 mm

Width/Diameter2.3 in / 58.42 mm

Shipping Weight2.10 lbs / 0.95 kg

Carton Height6.5 in / 165.1 mm

Carton Length5.5 in / 139.7 mm

Carton Width5.25 in / 133.35 mm

CertificationsUL1480, UL2043

Enclosure PropertiesAnodized Aluminum

Included AccessoriesConduit Clamp

Optional AccessoriesTitanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Glass (PEM-G)

TAA Compliant (Trade America)Yes

BAA Compliant (Made in USA)Yes

Coverage Angle (±6dB @ 2kHz)120°

Cutout Width/Diameter3.5 in / 88.9 mm

Frequency Response (± 10 dB)80 Hz - 15 kHz

Frequency Response (± 3 dB)90 Hz - 10 kHz

Max. Continuous Power RMS30 W

Max. Program Power50 W

Transformer Options10 W Transformer
