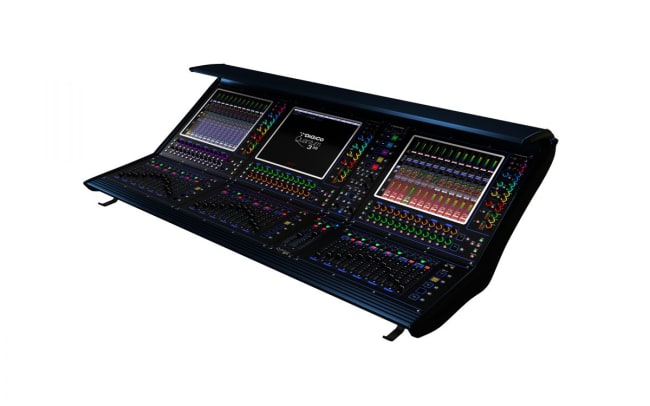

Quantum 338 Touring-system (HMA optics)
Produktnummer: DIG-X-Q338-SY-OP
System med SD-Rack og Optocore HMA
| Mikser atributt | |
|---|---|
| Antall fadere | 38.0 |
| Dante | Opsjon |
| DMI kortplasser | 2 stk |
| Antall prosesserbare input | 128.0 |
| MADI bnc | Ja |
| MADI Cat | Opsjon |
| Optocore | Ja |
| Antall prosesserbare aux/grp | 64.0 |
| Produkttype | Mikser-System |
| Samplingrate | 48;96 |
| Skjermer | 3 stk 17" |
| USB interface | 48x48ch |
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Opprinnelsesland | GB |
| Produsentens varenummer | X-Q338-SY-OP |
1 x Q338 surface - 36+2 faders, 2 DMI slots, 24ch USB Audio I/O, 6 BNC MADI, 2 PSU, 16 GPIO, dust cover128 mono input channels, 64 mono output busses2 mono or stereo solo busses. LR or LCR master buss24 x 24 matrix, 24 CG/VCA, 24 FX, 24 x 32 band graphic eq’s,64 Nodal Processors, 36 Mustard Processors, 8 Spice FXLocal I/O 8 x Mic/Line inputs, 8 x Line outputs, 8 x AES I/O mono 1 x Stage SD-Rack, HMA optics, 2 BNC MADI, 2 MADI splits, dual PSU - 56 32Bit mic/line in / 40 32Bit line out / 16 AES out, packing carton 2 x 150m HMA optical cable on drum
